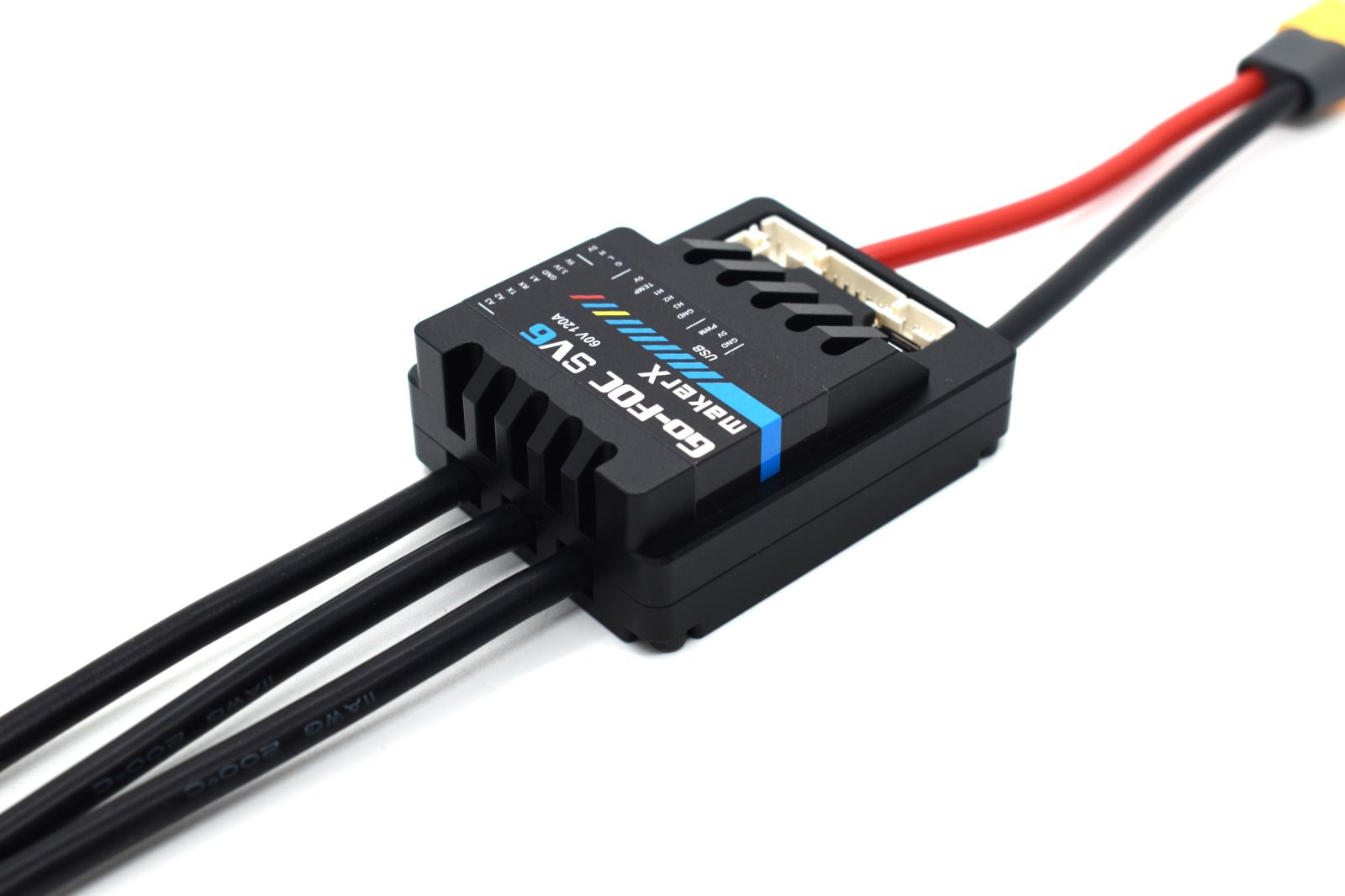

Go-FOC SV6 ----- 120A Singel Drive VESC MakerX



 Based on vesc6  Small size  high Current

Shipping list:
Go-FOC SV6 (Includes heat sink)  x   1
XT60+ Plug (Male and female)  x  1
5.5mm Bullet plug (Male and female) x 3
PH2.0MM 6Pin JST wires   x   4
Micro USB data line    x   1



PARAMETER

- Voltage: 8V - 60V (2S to 12S LiPo safe).

- Current: 120A continuous  15 seconds ! (5C612 x 2 )

- 5V 1A Output

- 3.3V 1A Output

- Mode: DC, BLDC, FOC (sinusoidal)

- Supported sensors: ABI, HALL

- Size: Long * Wide * High 60 * 47 * 23

- Weight  : 148 g



Measure the current and voltage of all phases
- Regenerative braking
- Traction control (single and double settings)
- Sensorless or Sensorless Operations + Mixed Mode
- Configurable RPM, Current, Voltage and Power Limitations
- Input source: PPM, simulation, NRF Nyko Kama Nunchuck
- Communication Port: USB, CAN, UART
- Throttle Curve and Slope of All Input Sources
- Separate acceleration and brake throttle curves
- Seamless Four Quadrant Operation
- Motor speed, ampere hour, watt hour count
- Real-time data analysis and readout through communication ports.

- Adjustable protection:
- Low input voltage
- High input voltage
- High motor current
- High input current
- High regenerative braking current (motor and input limit separately)
- High Speed (Individual Restriction in Each Direction)
- Overtemperature protection (MOSFET and motor)
