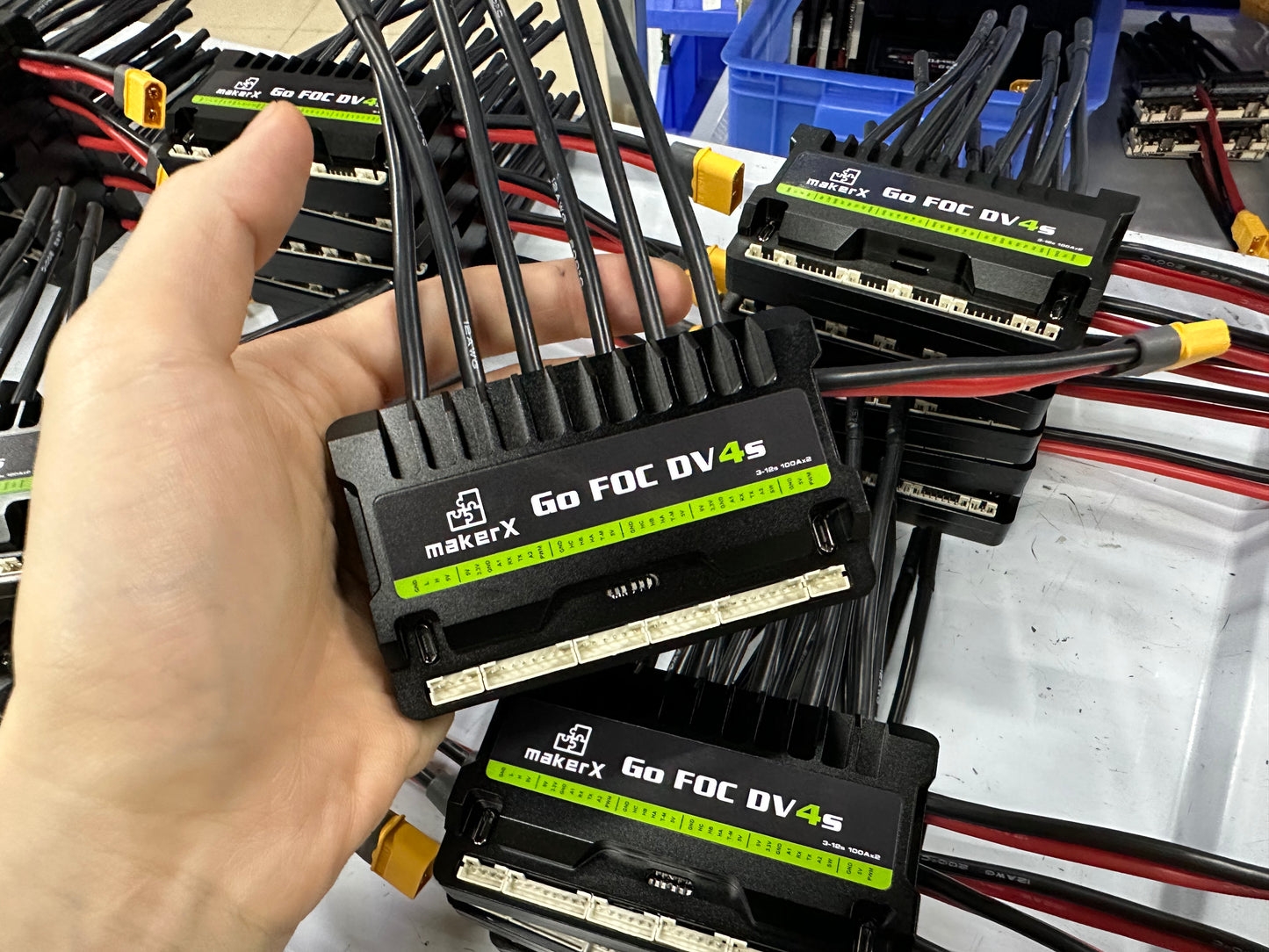

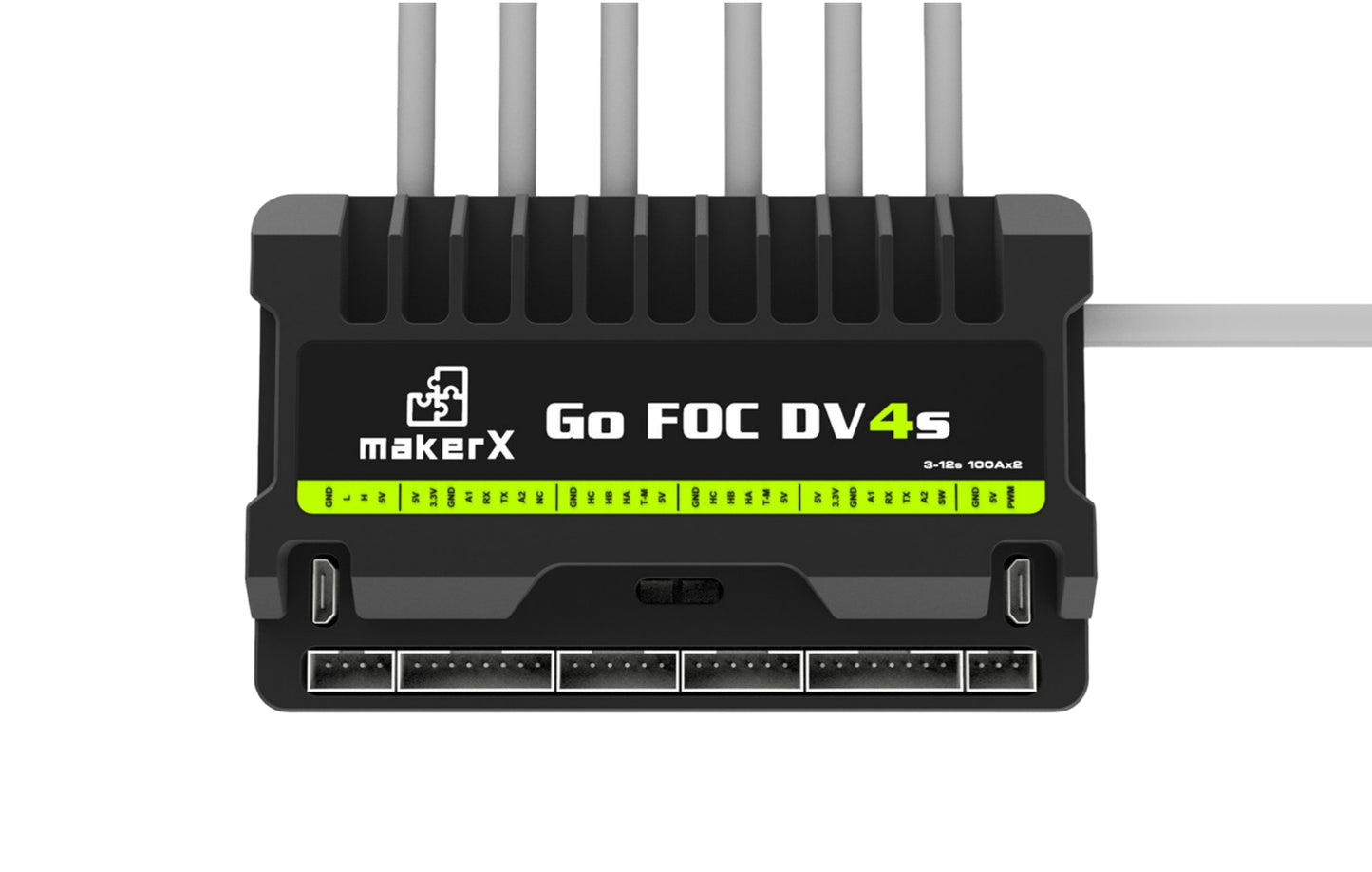

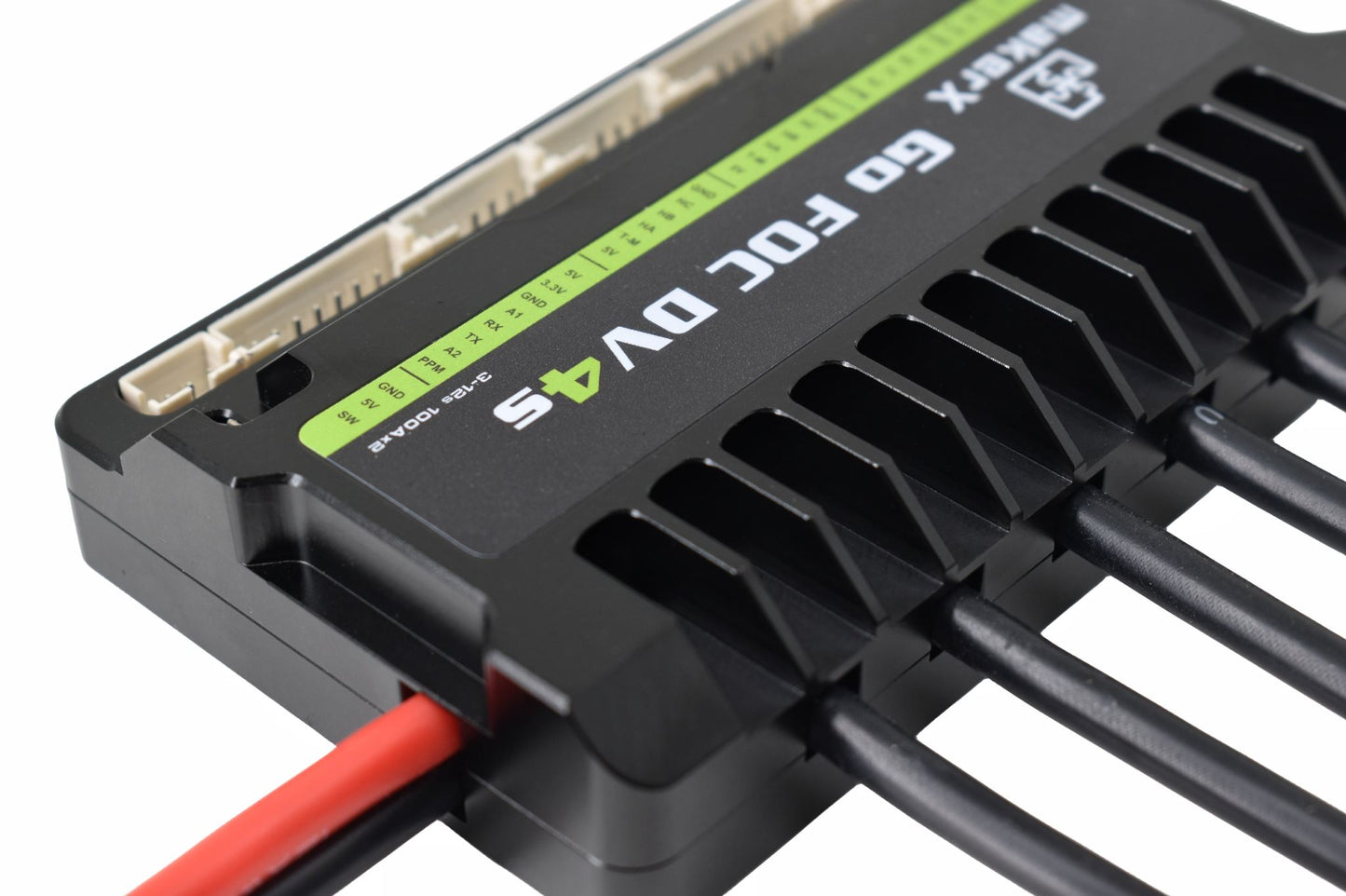

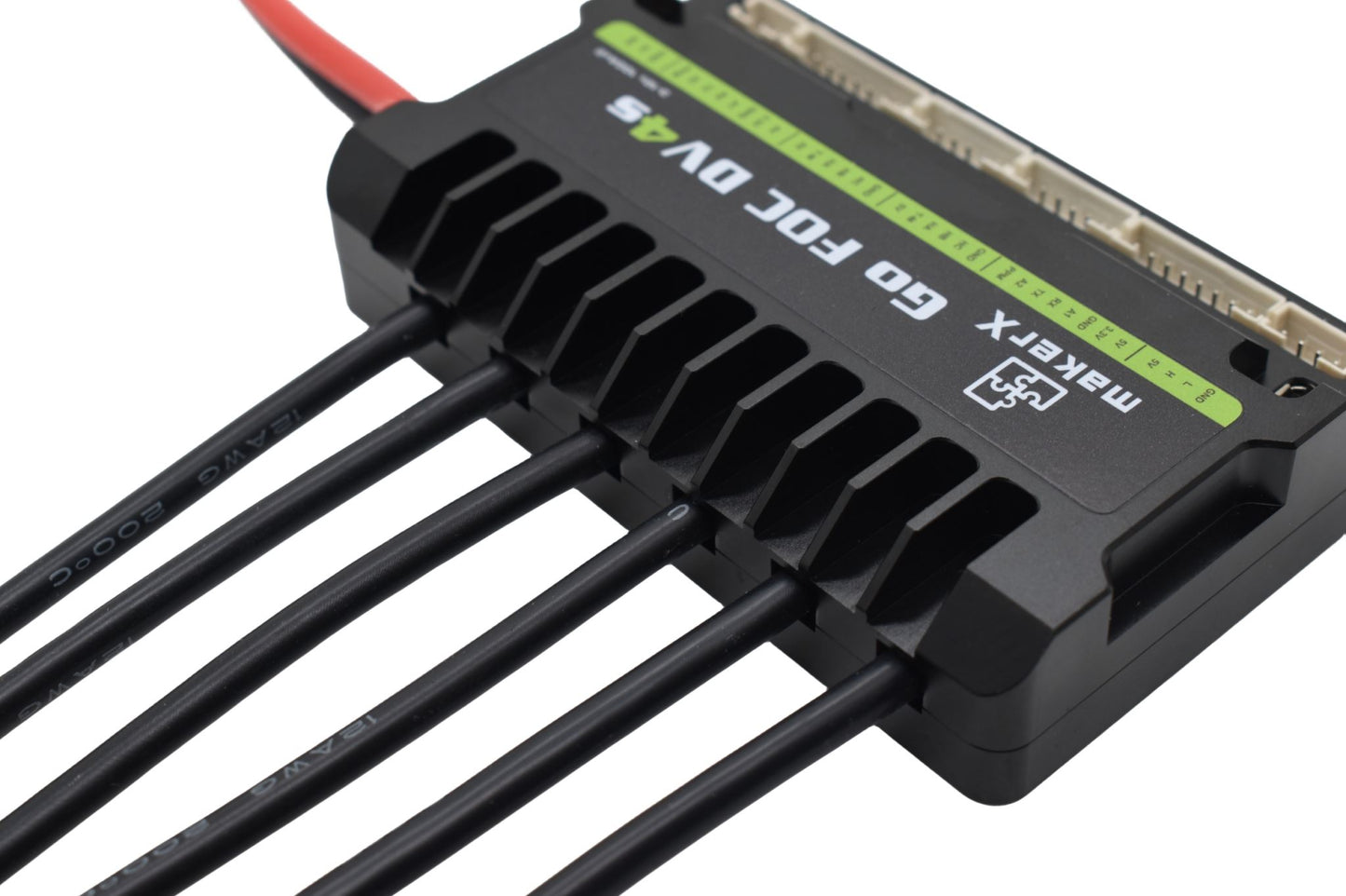

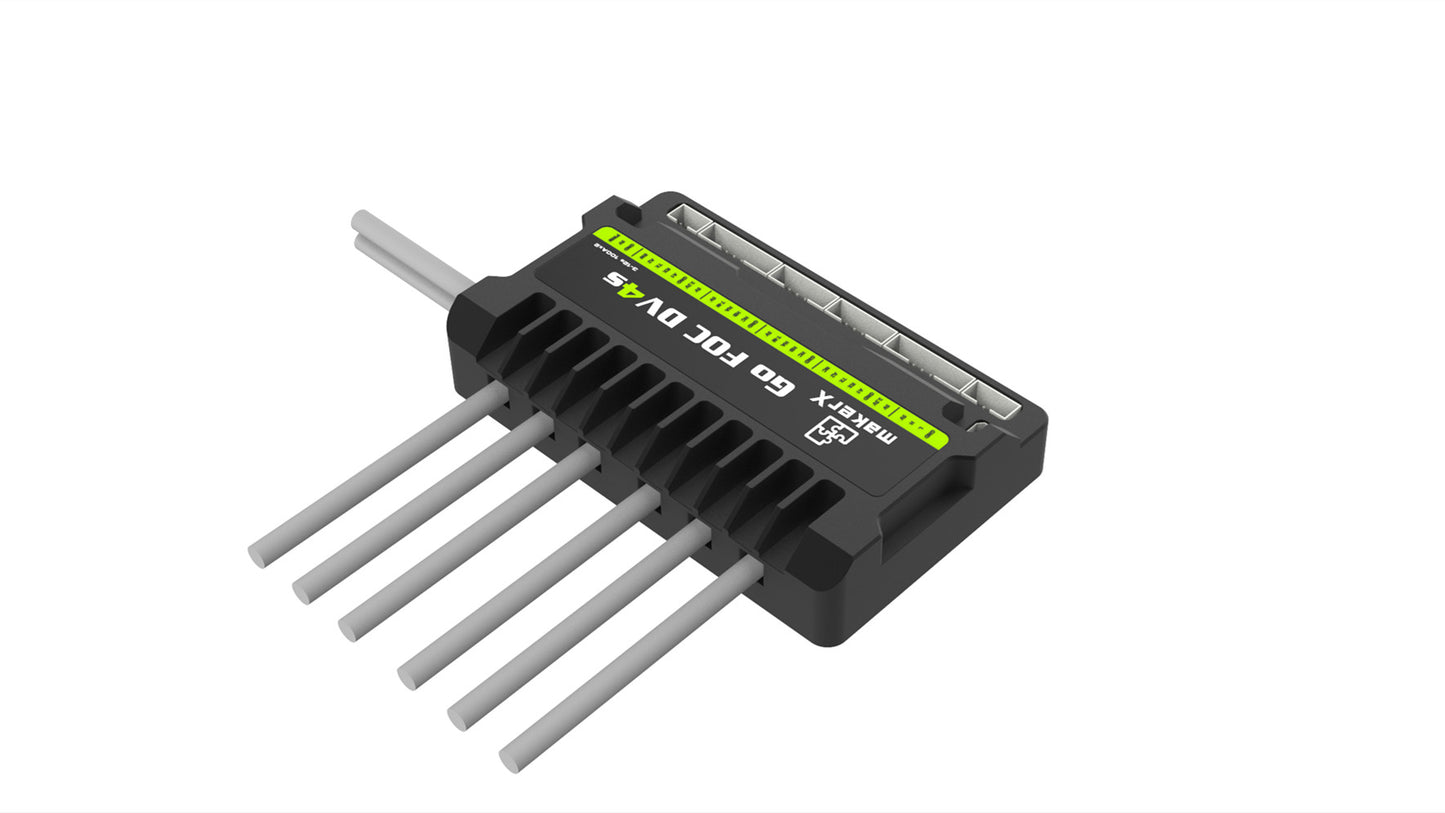

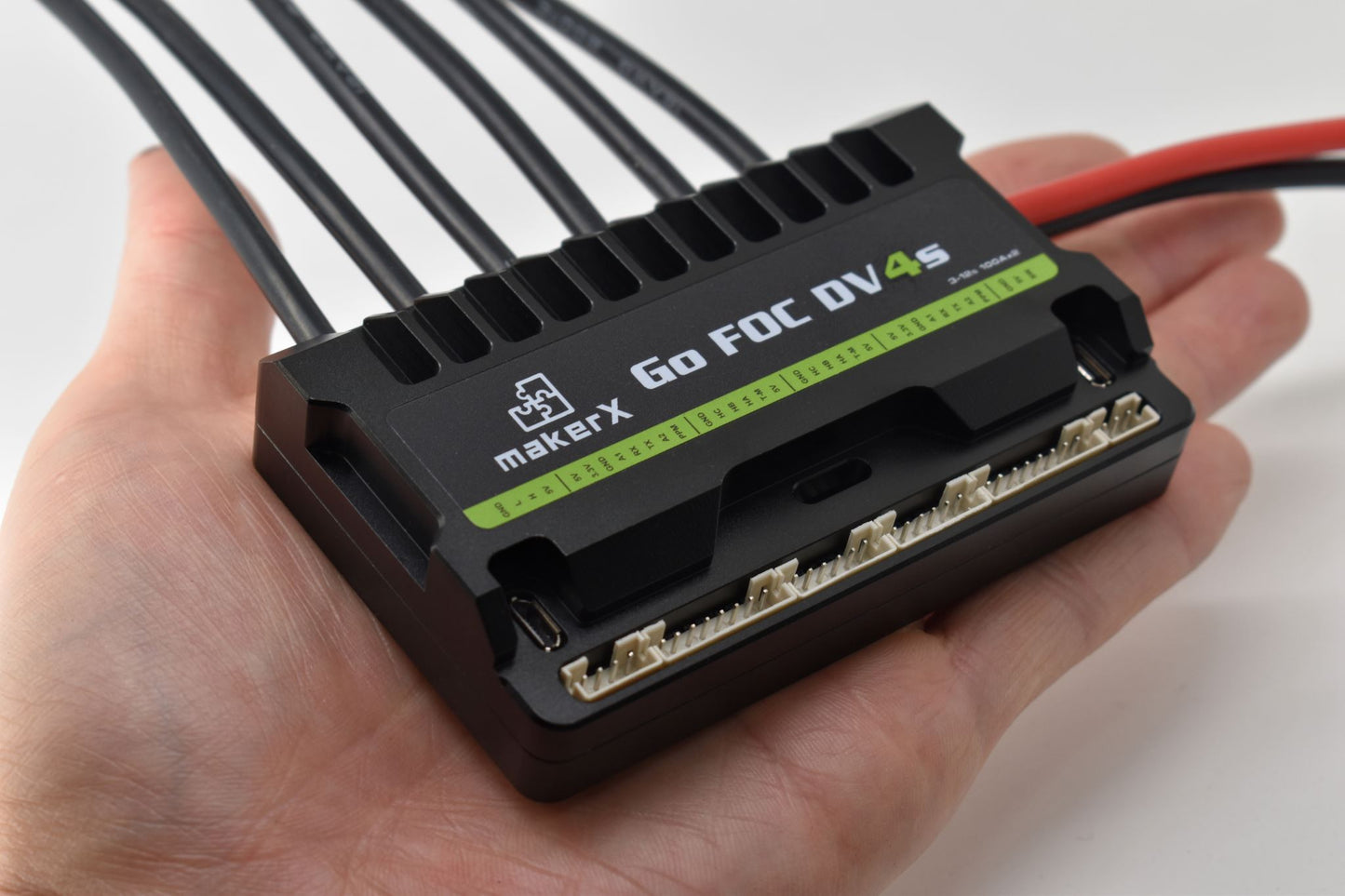

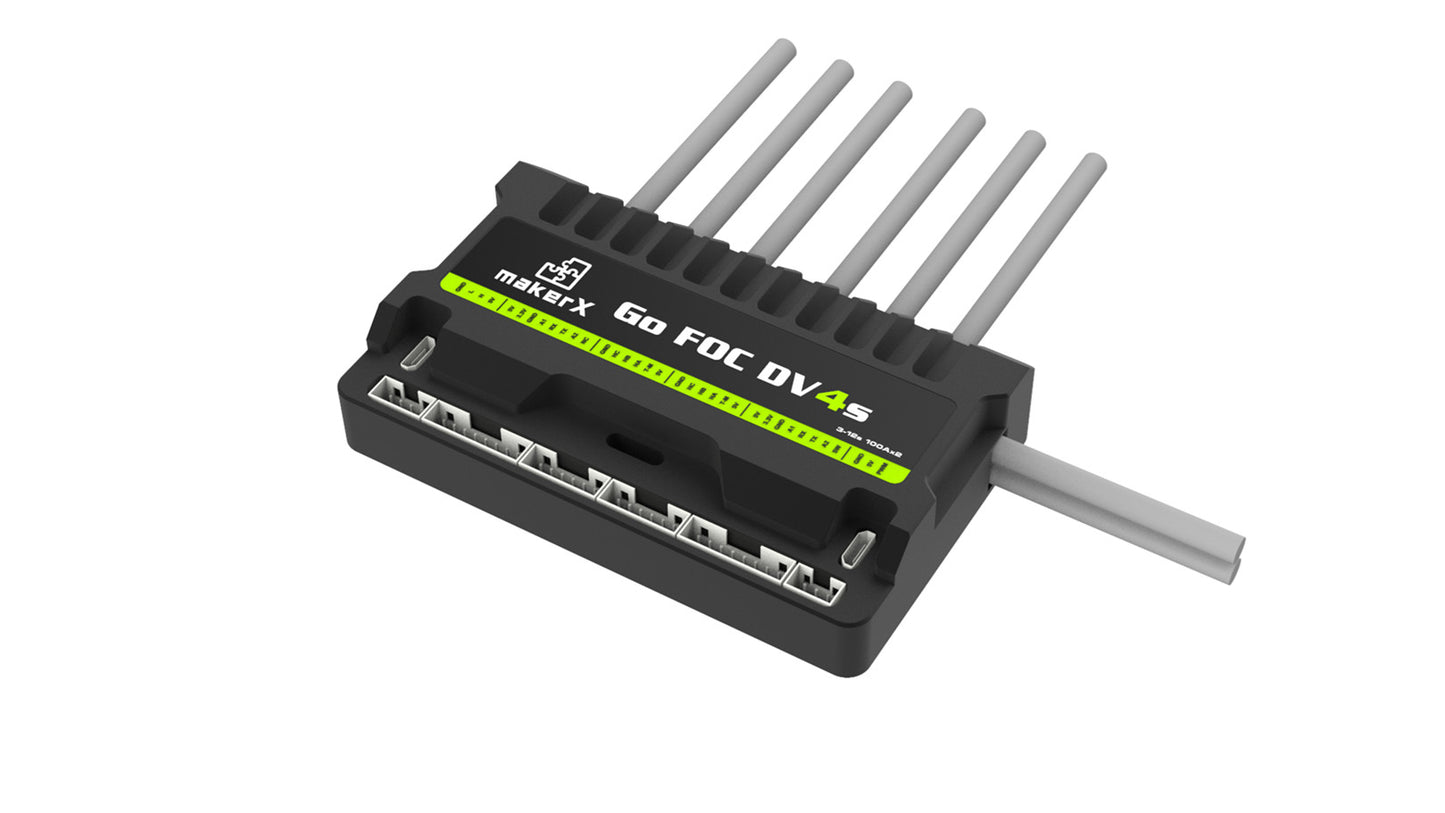

Go-FOC DV4s Dual drive ESC Base on VESC4 12s 100A

Features:
*Building based on VESC
*All aluminum alloy heat dissipation shell
*Built-in switch (supports pushing to start)
*Small volume (96x60x19.5mm)
*100A phase current on each side
*More mature circuit design
*Custom Firmware



Shipping list:

Go-FOC DV4s(Cooling box included) x 1

XT60 Plug (Male and female) x 1

4mm bullets connectors (Male and female) x 6

PH2.0MM JST wires

Micro USB cable x 1

16mm Metal Power Switch.



Voltage : 8-60V(3-12sLIPO )



Current :100A x 2



Hardware: based on VESC 4

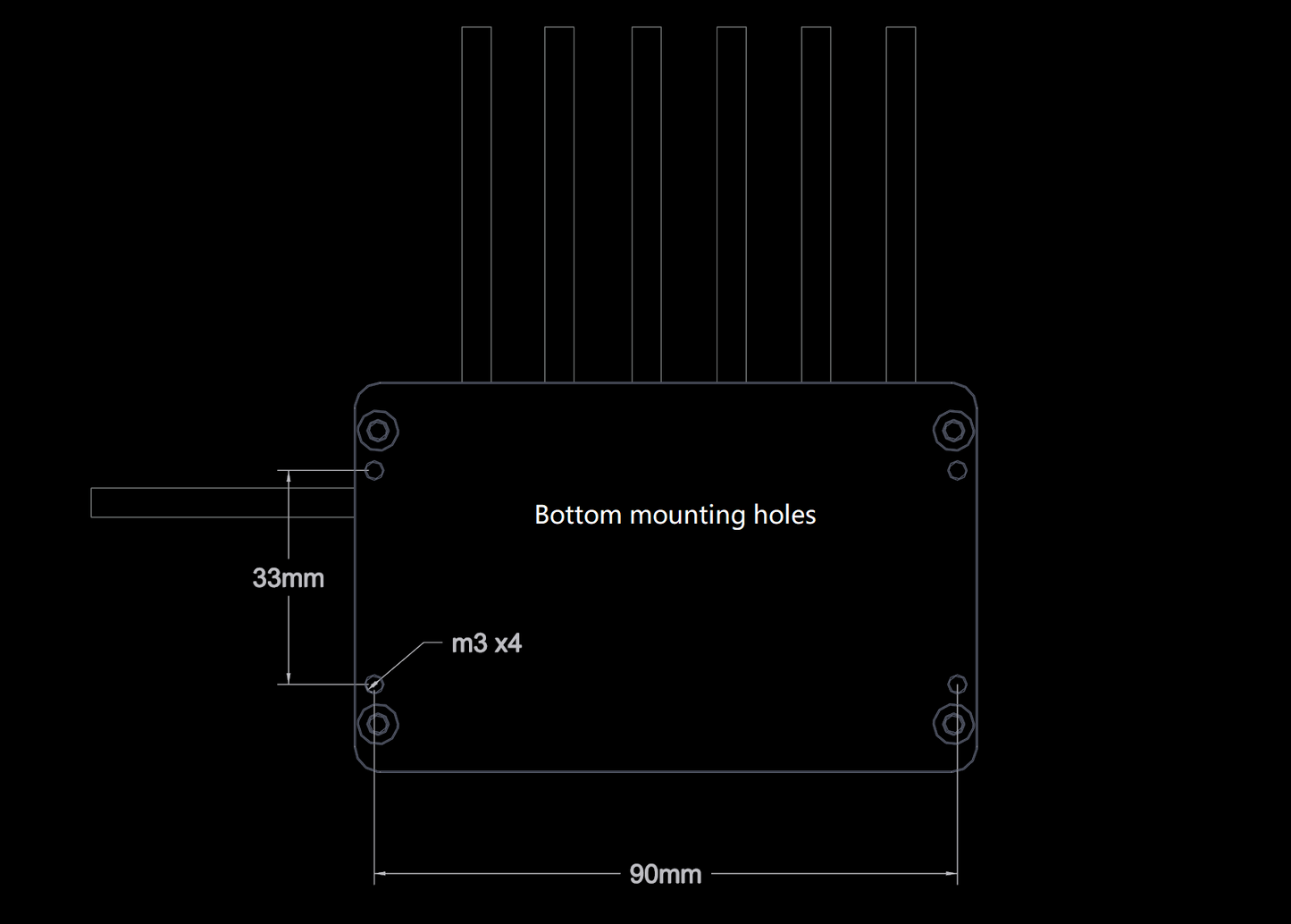

 SIZE:96*60*19.5MM



Weight: 255g







Custom firmware download address:

https://www.makerx-tech.com/pages/download



How to use the built-in switch:

https://www.makerx-tech.com/pages/how-to-use-the-built-in-power-switch
