Simple 12s Anti Spark Switch

MakerX Simple Anti Spark Switch is suitable for frequent switch of high-power electrical appliances, such as UAV, ship model, vehicle model, DIY electric skateboard, high-power electric vehicle, industrial DC high-power contact products, etc.



PARAMETER

Voltage: 3-12SLipo (<60V)

Continuous current：  200A

Peak current：800A

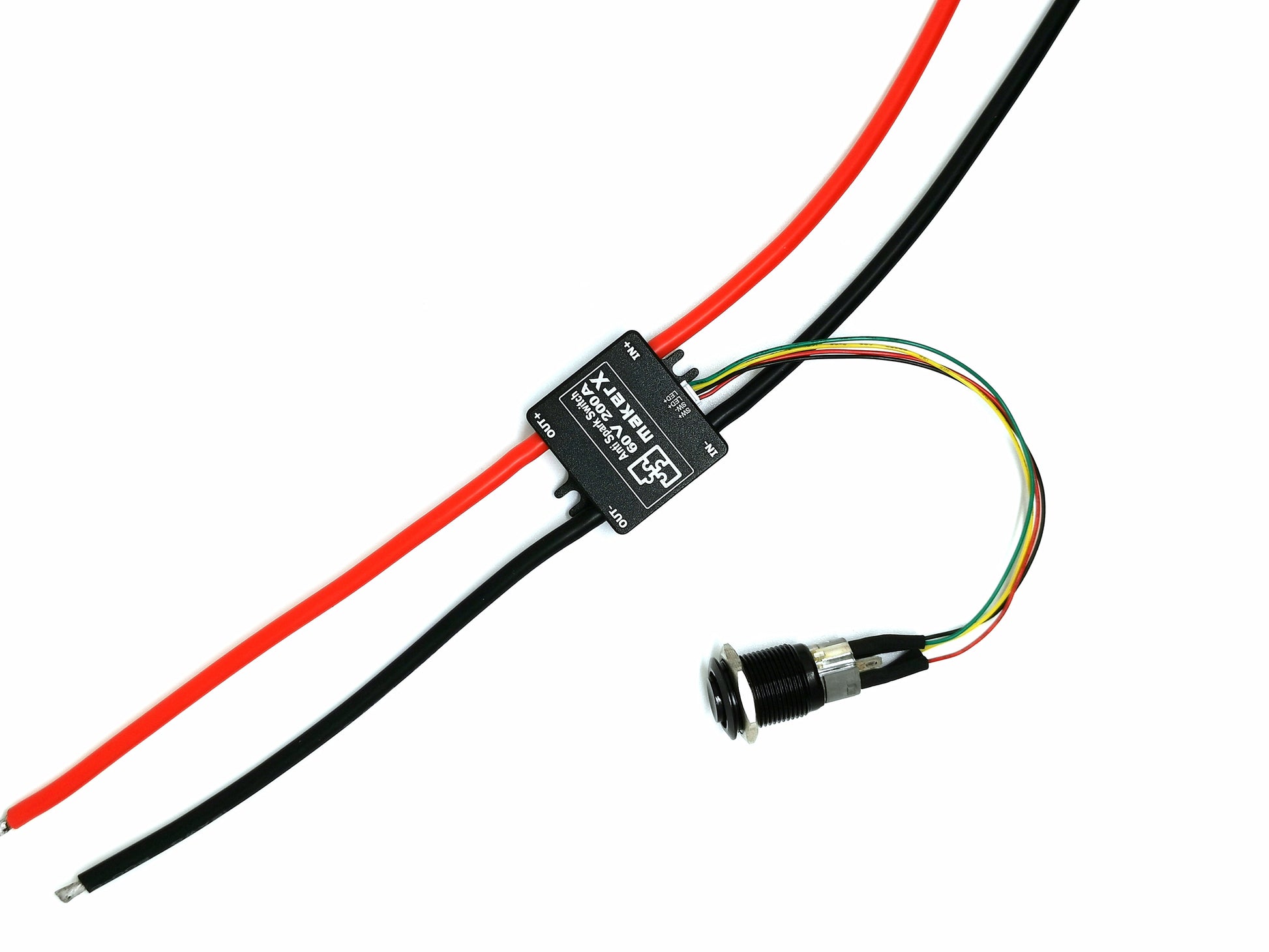

Self-locking switch button

LED switch indication

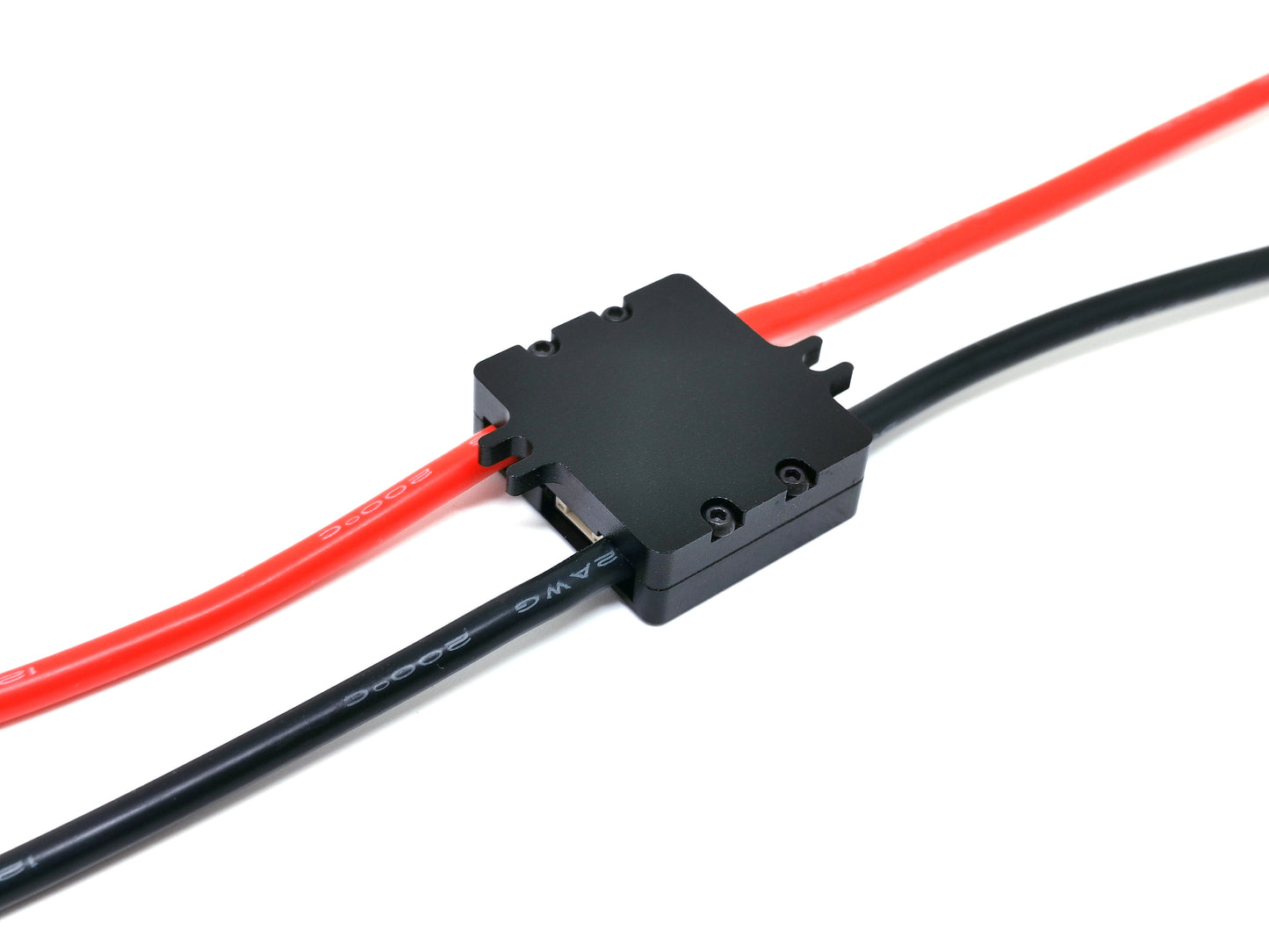

Aluminum box cooling shell

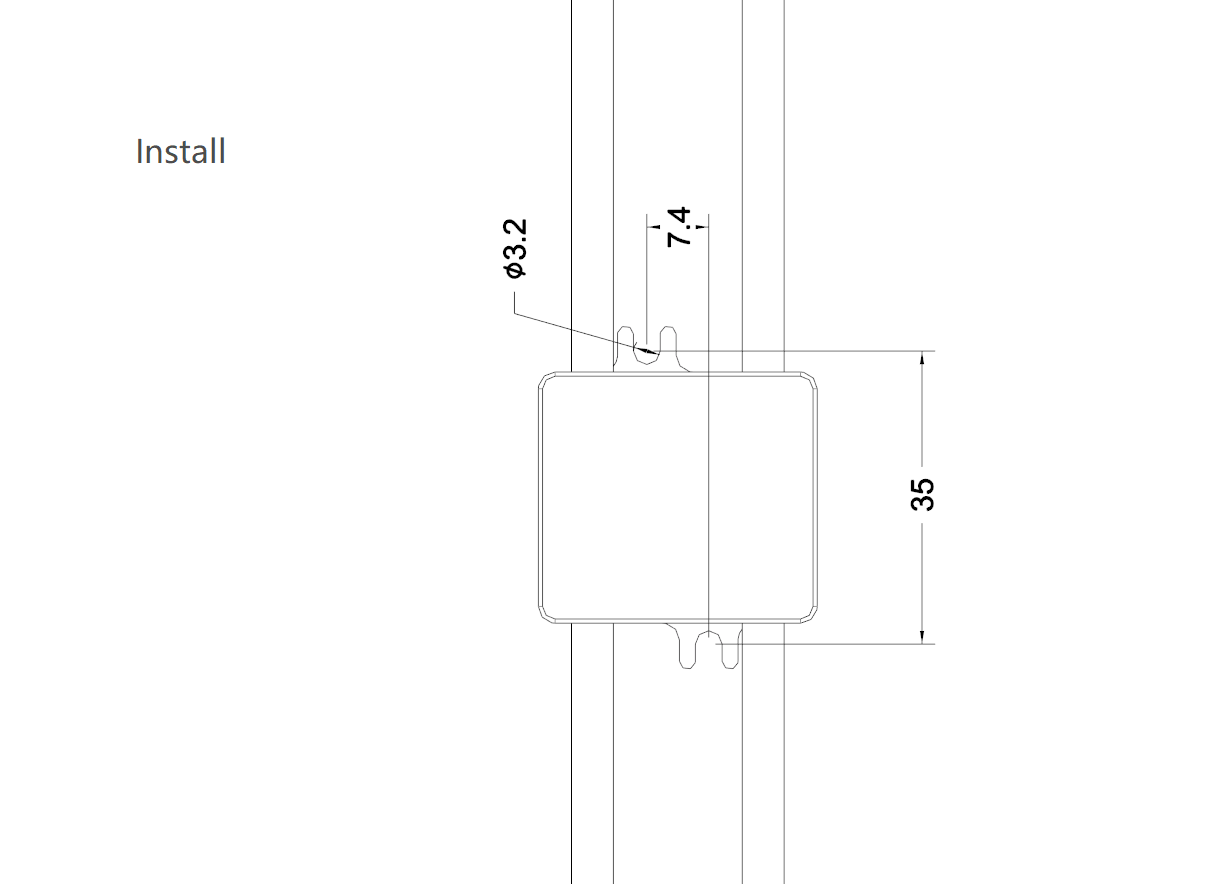

Extra small size：33*30*11mm

weight：55g

GH1.25 button terminal wire





Notice:

Even a small short circuit at the output can cause damage to the switch，Please make sure the wiring is correct before connecting the battery
