About Phase filter

Phase filter is not available on HI200  ,HV200  ,HI100   D100    M100,If you are using official firmware, Please turn off the phase filter!

If using the custom firmware we provide, you can ignore this page

Using official firmware version(non-custom firmware) 5.03 ,or above, without turning off the phase filter, will damage the ESC ! !

How to turn off the phase filter( As shown):

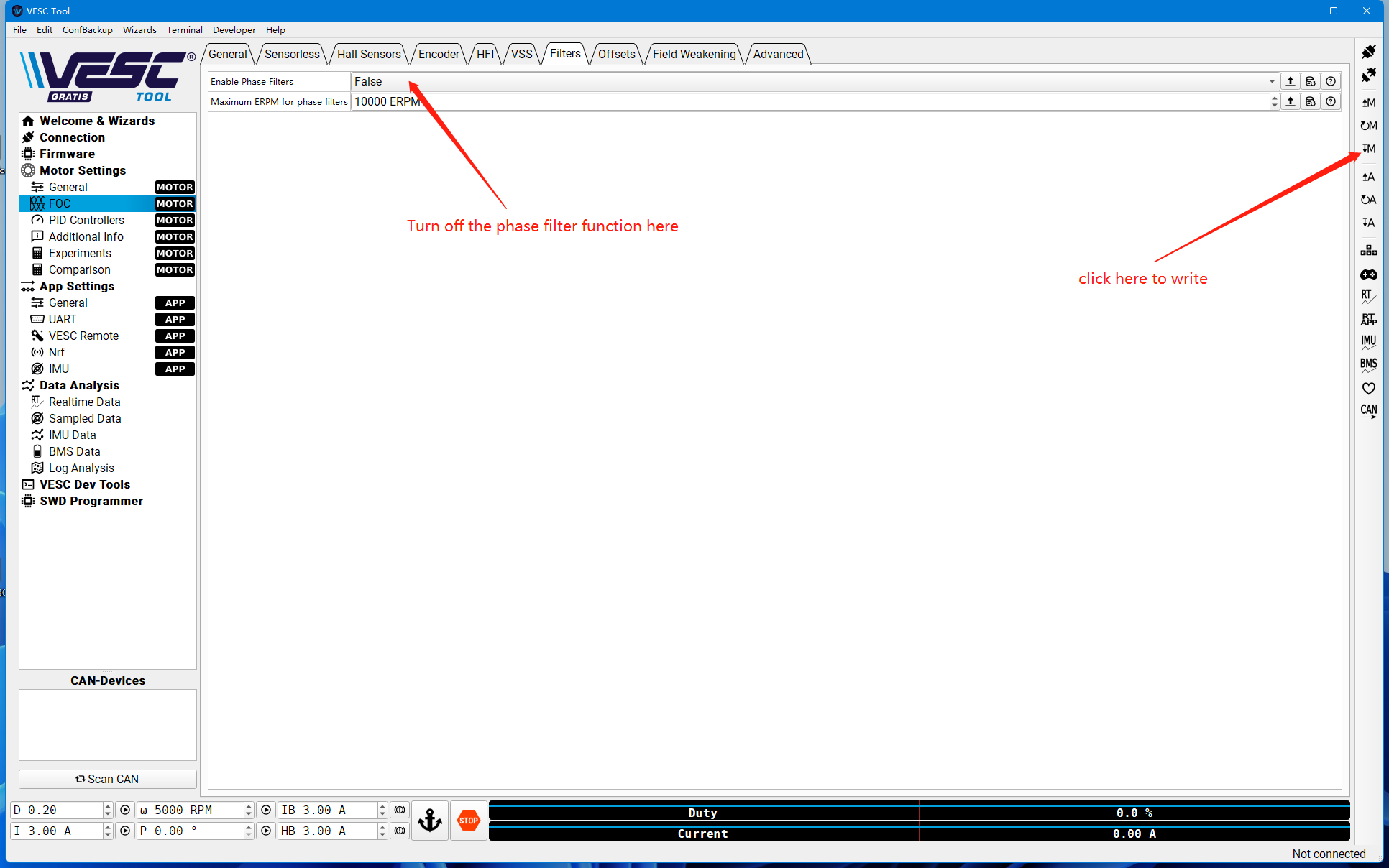

1.Go to the "FOC" page, find "Filter", select "False" and write to the ESC.

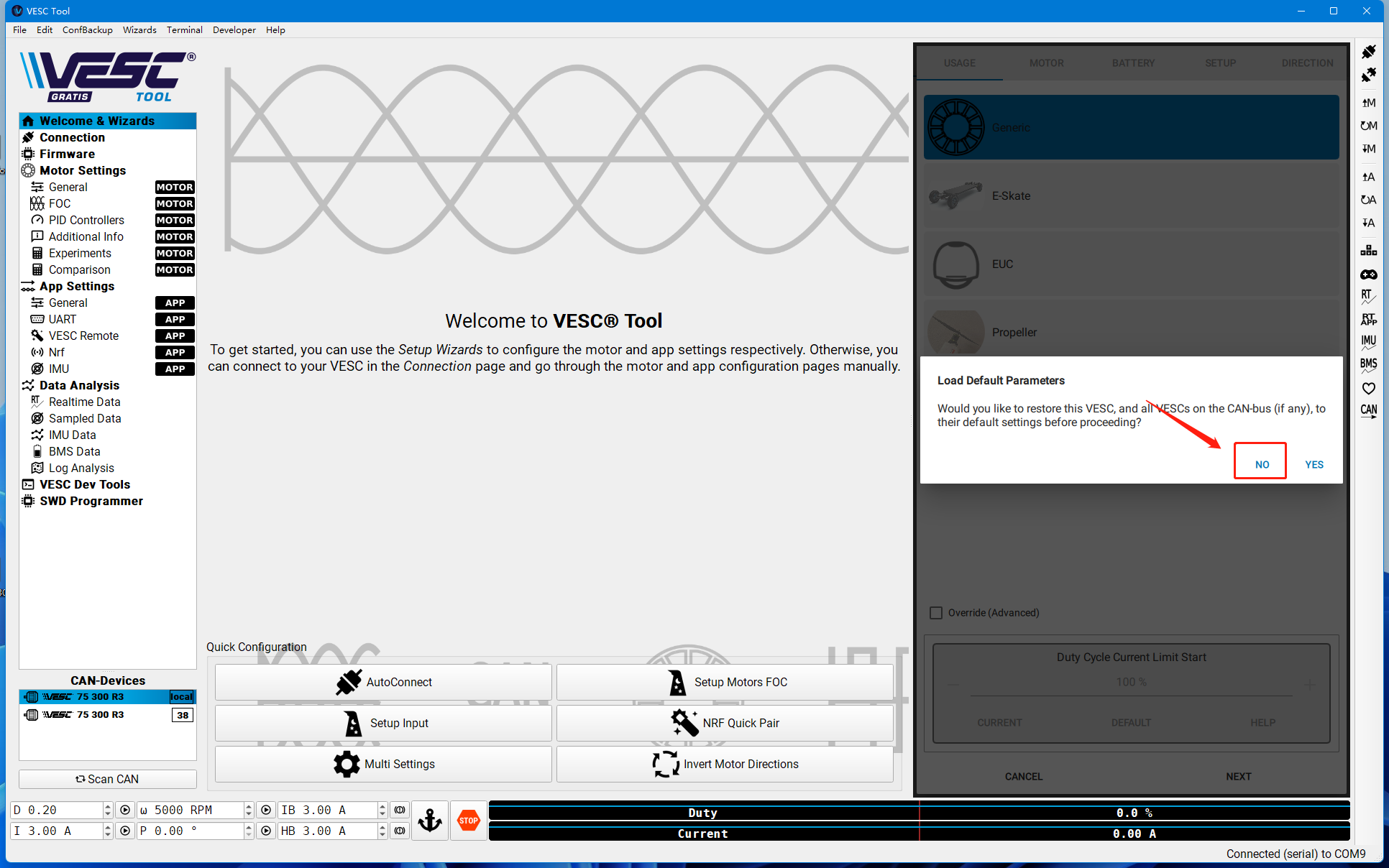

2.After ,  please do not choose restore the default parameters when using wizards to Configure the motor.
