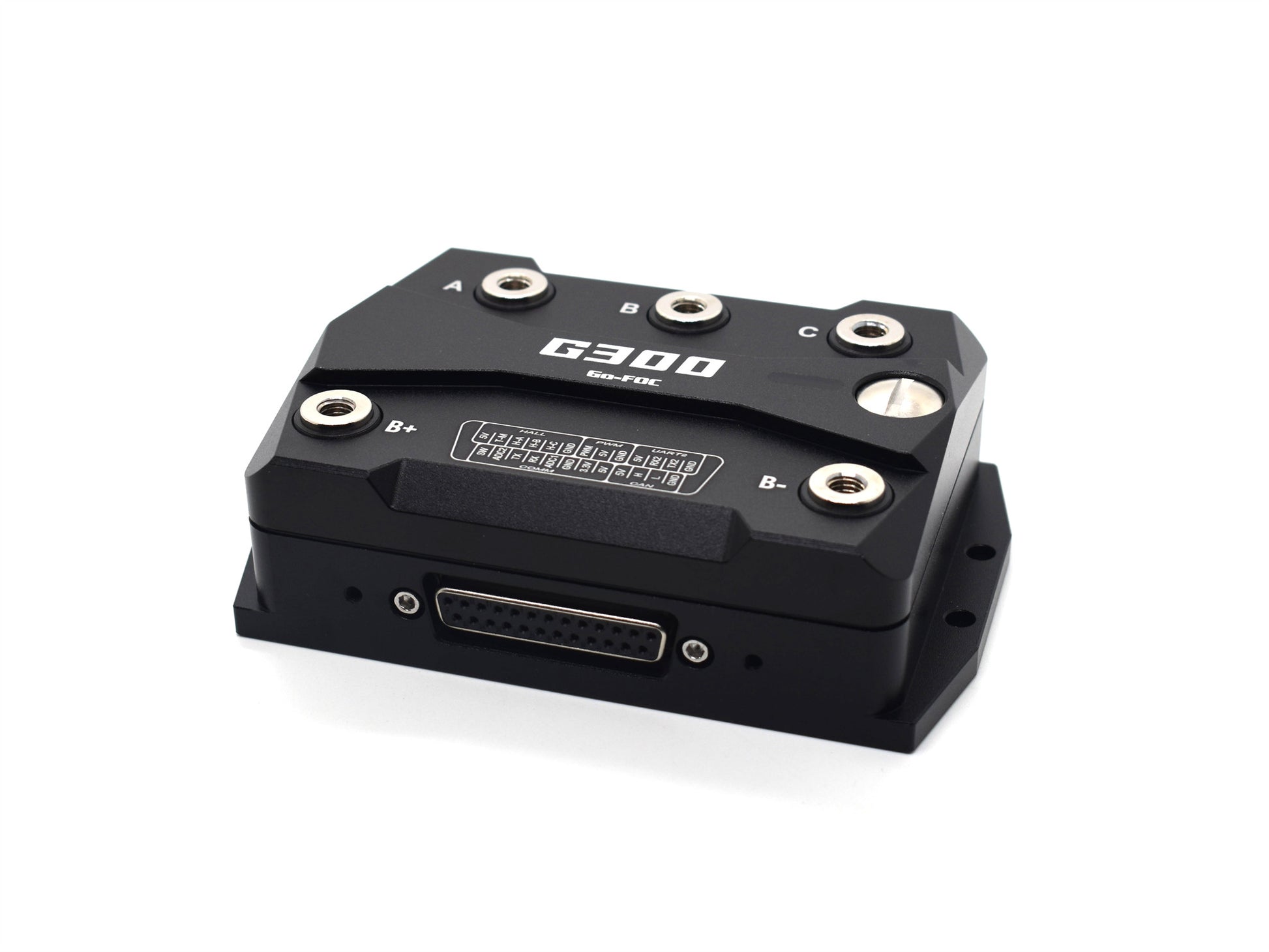

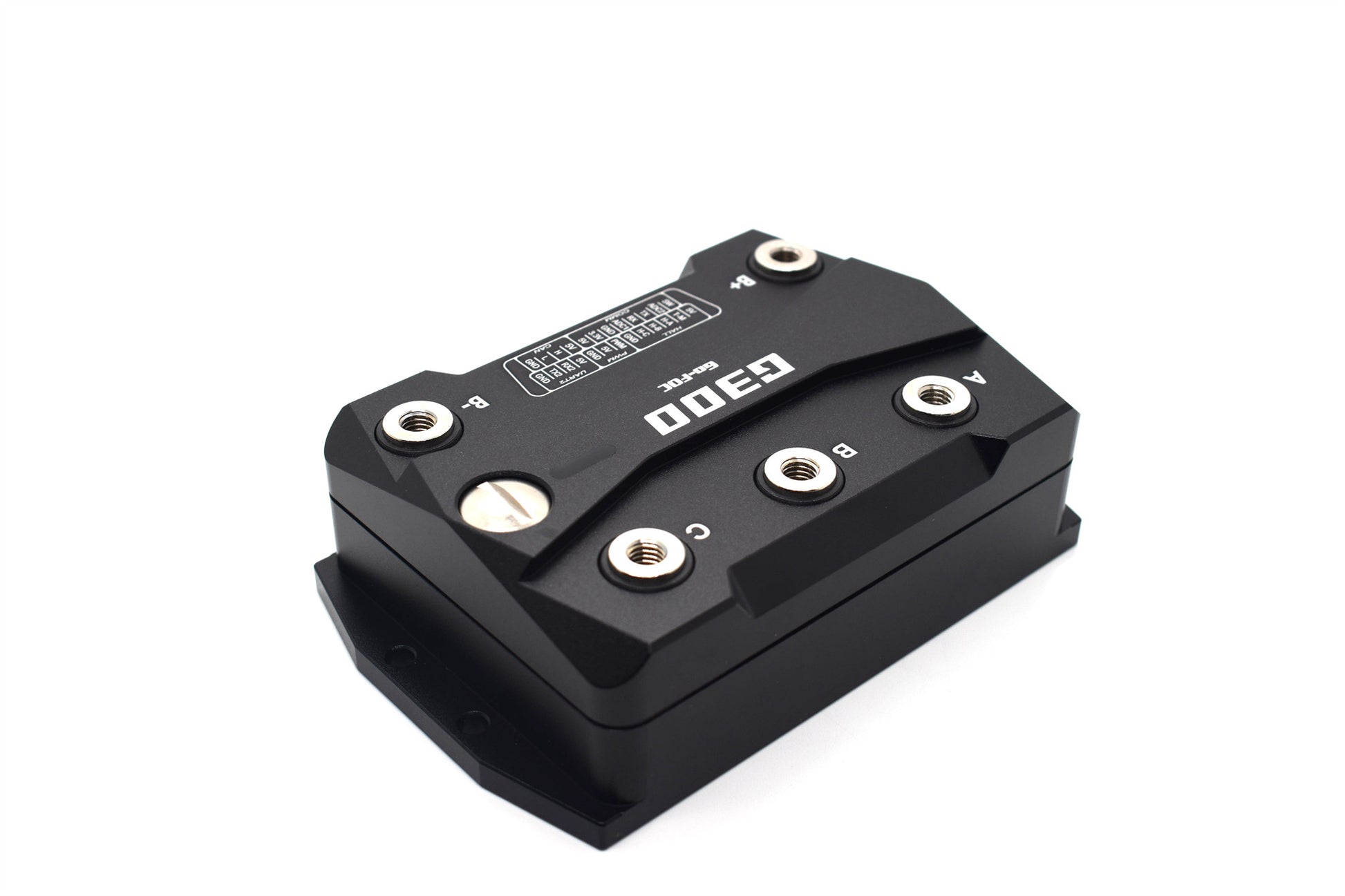

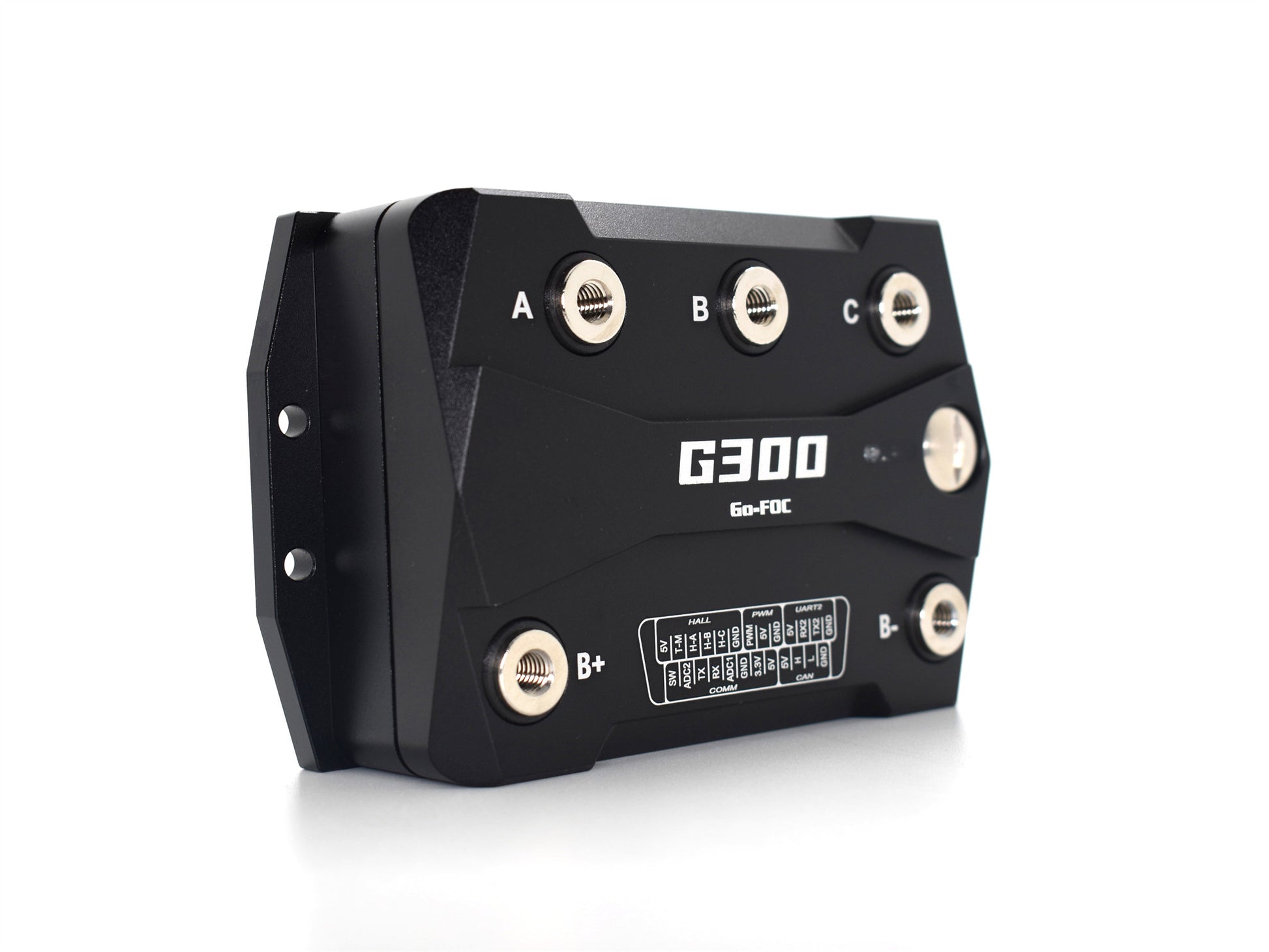

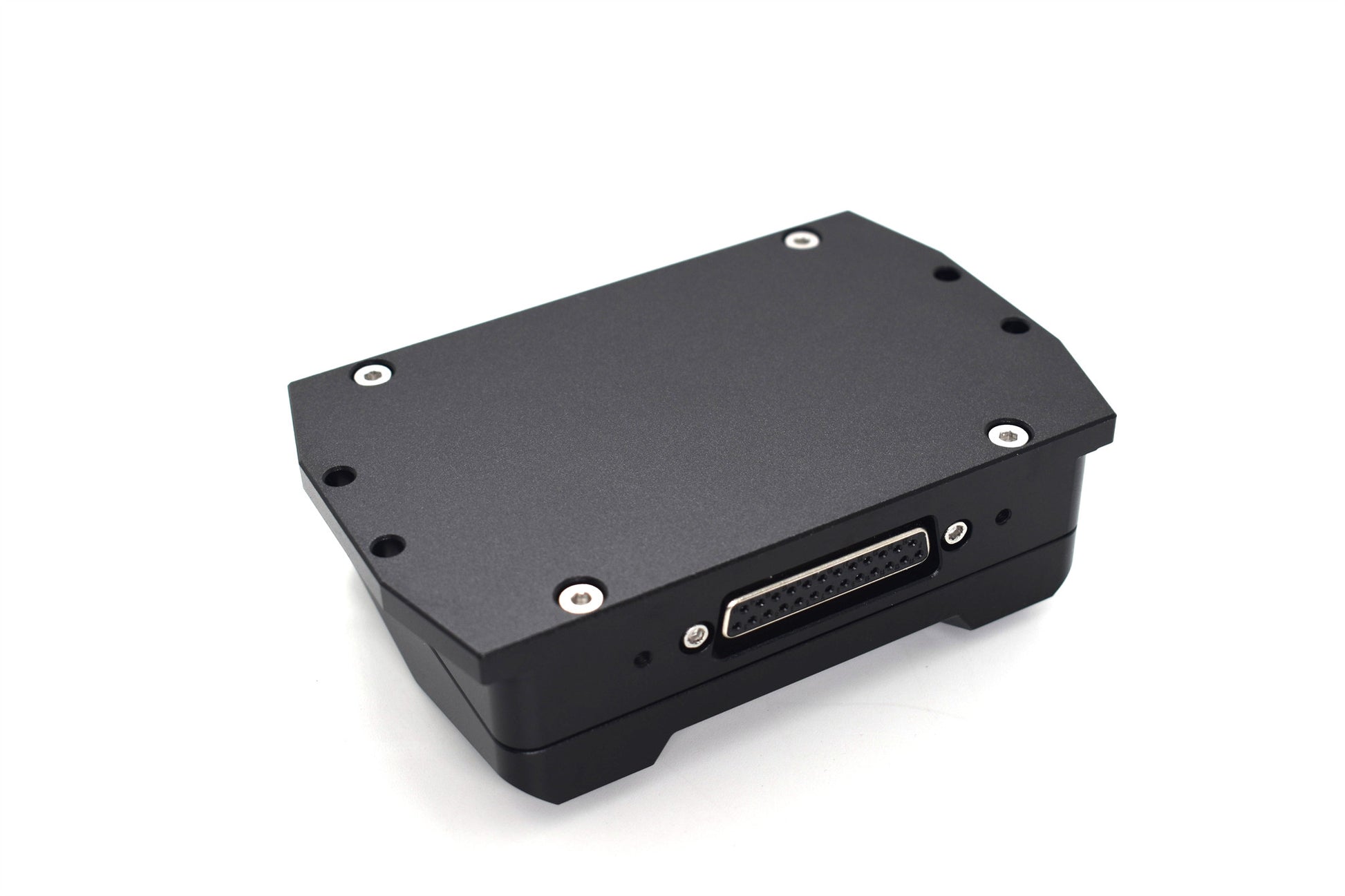

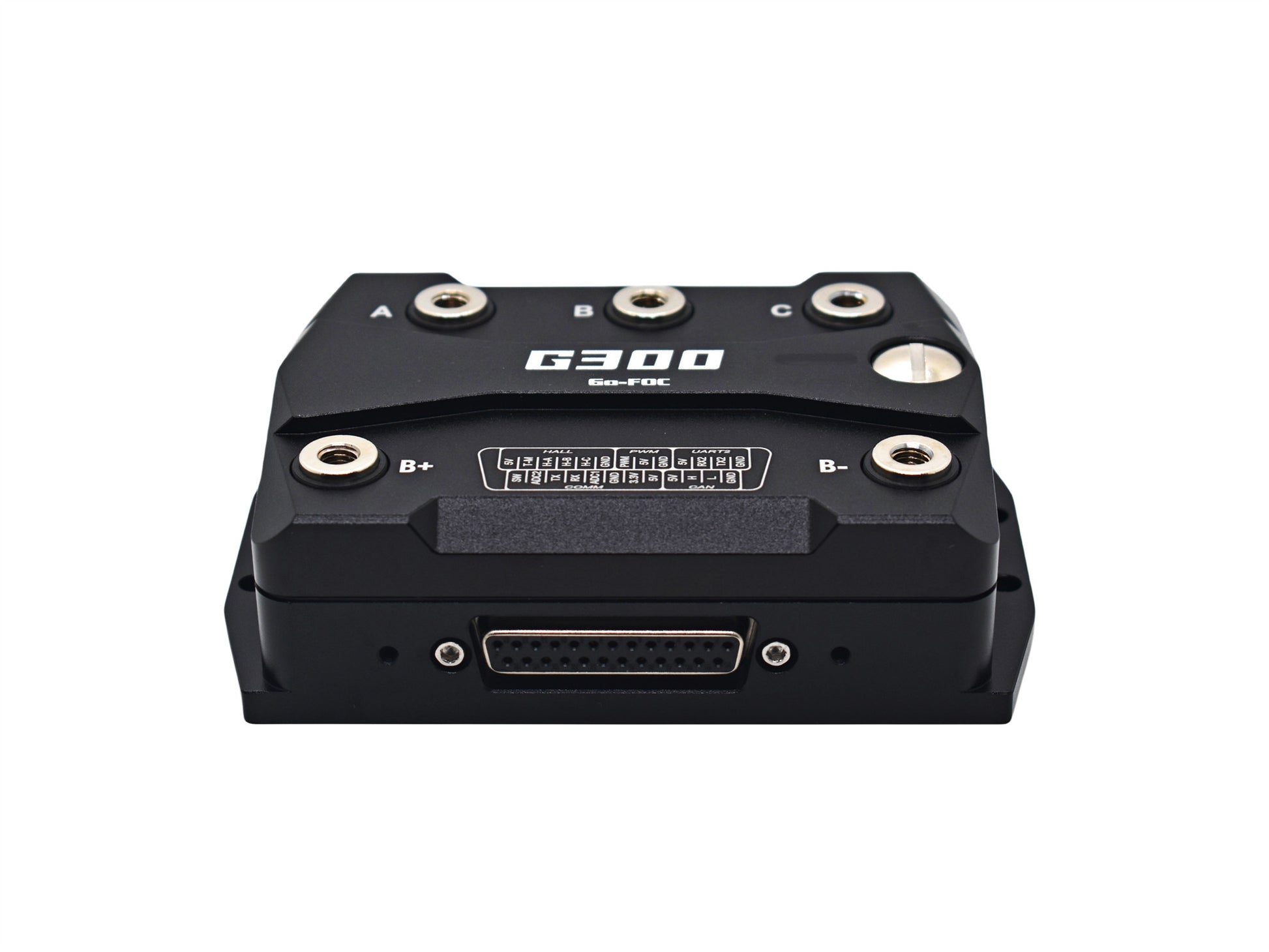

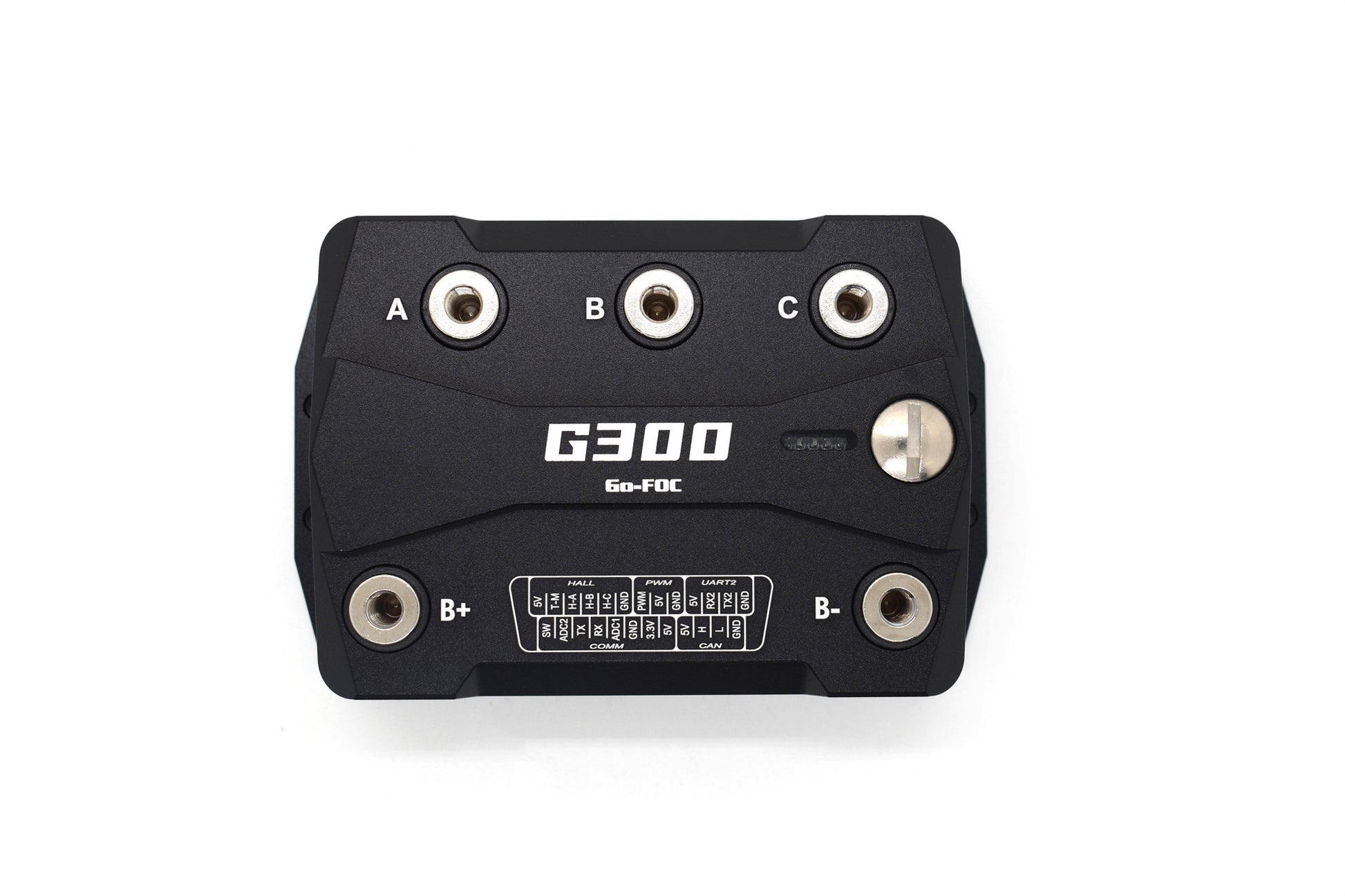

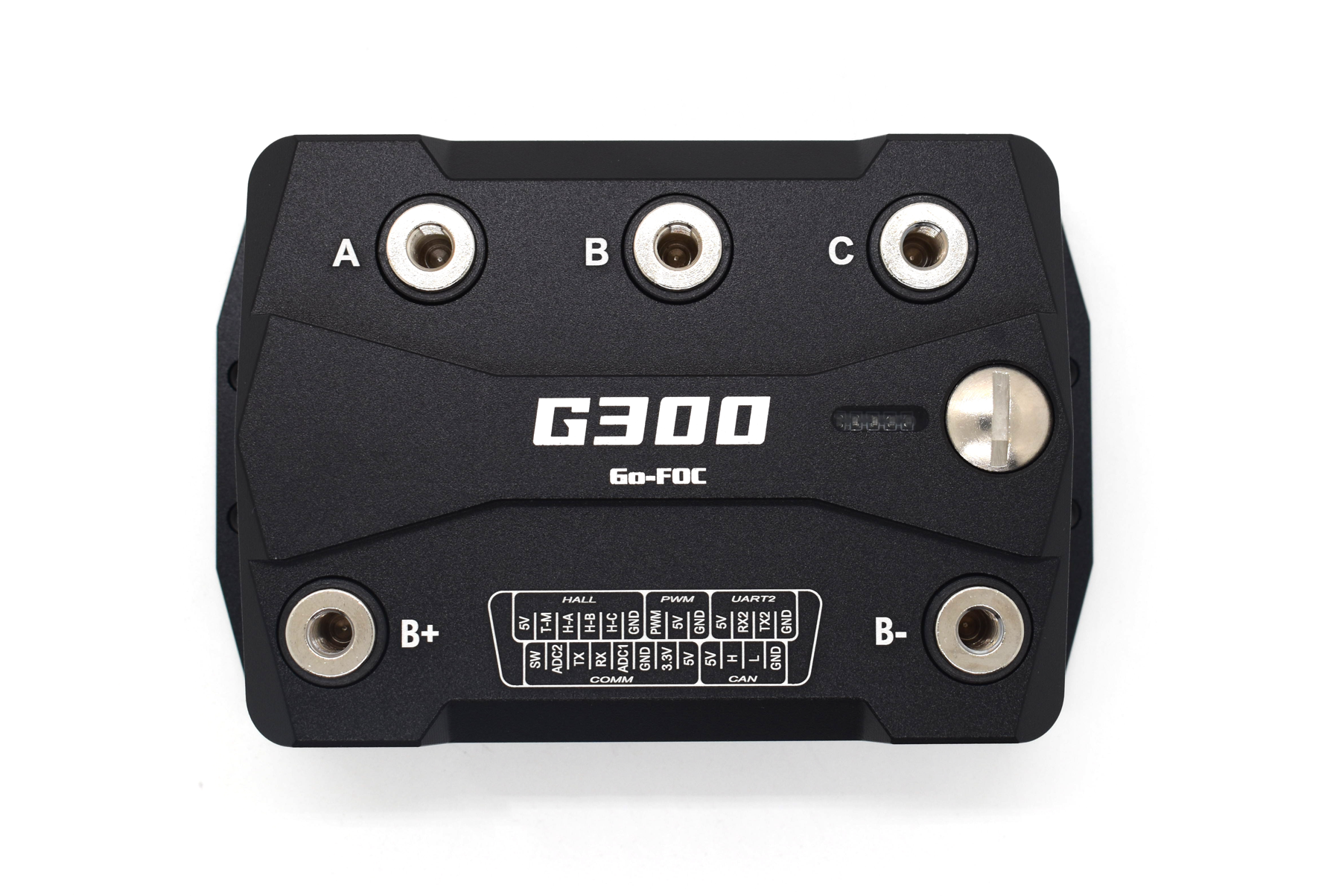

Go-FOC G300


Feature

The new Go-FOC G300 built on VESC.

300A (500A peak)phase current performance Beast.

Extremely small volume..High energy density

8 waterproof rubber ring, support the whole body anti-splash.

All aluminum alloy shell, super heat dissipation ability.

High current wiring copper column.

Wiring harness assembly design makes the body more concise.

It can be used in electric surfboard, electric go-kart, electric motorcycle, electric boat, fighting robot, joint robot and other high-power brushless motor control fields.


Shipping list:
Go-FOC G300     x   1
M6x10 screws + lock washer   x5
Wire Harness Assembly   x1
PH2.0MM JST cables
TypeC USB cable    x 1
Precharge resistor  x1
16mm metal switch button  x1
--
--
NOTICE:
G300 uses customized firmware: If you need to update the firmware, please go to the Download Page to find the matching firmware.
G300 has a large internal capacitance and requires pre-charging during power-up. To avoid damaging the internal components, use the pre-charging resistor provided in the accessory package. Connect the resistor first before connecting the thicker wire, or use a socket with spark protection such as QS10-S.
_Update: Power Switch added.    → How to use ?
