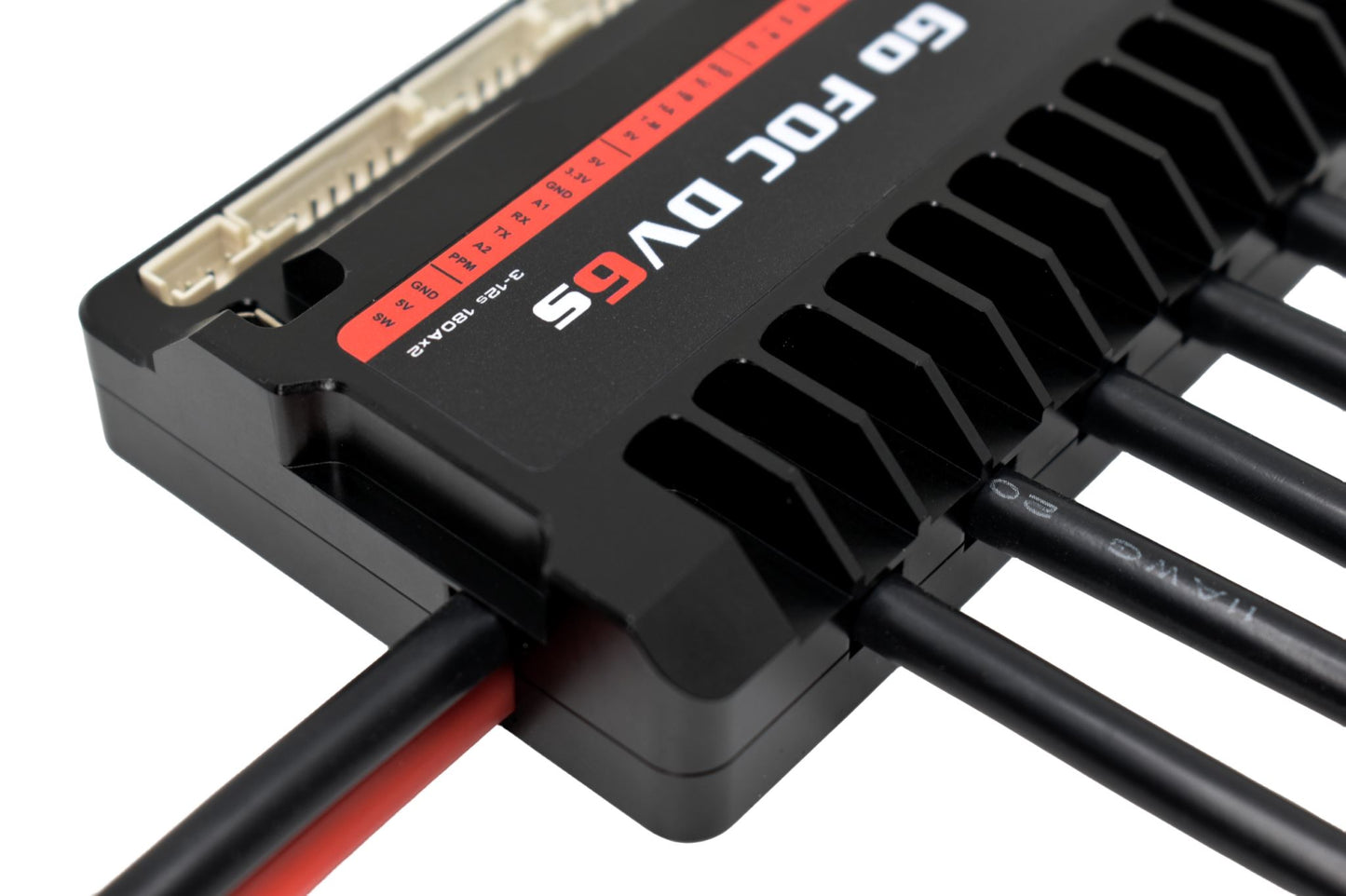

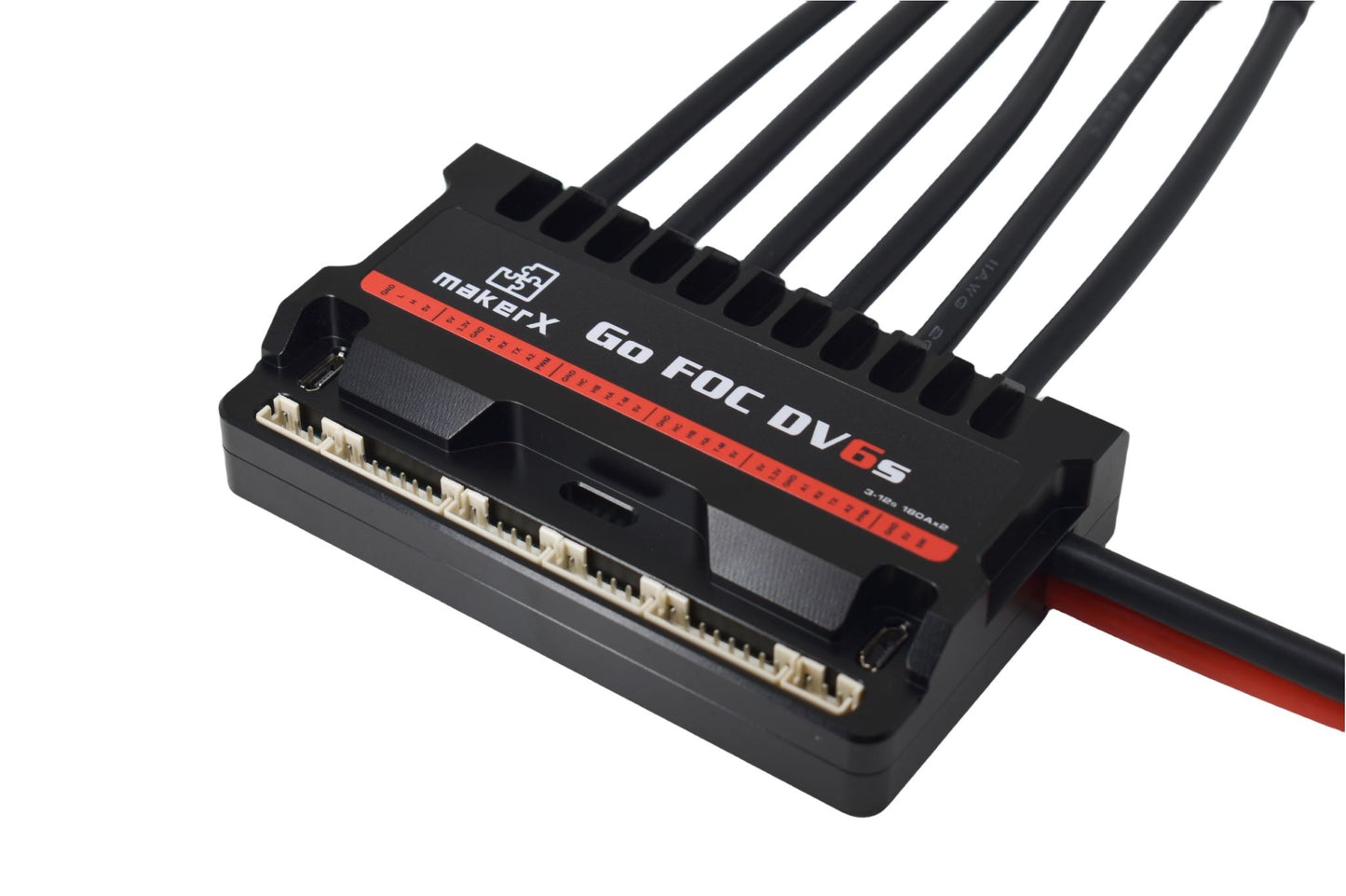

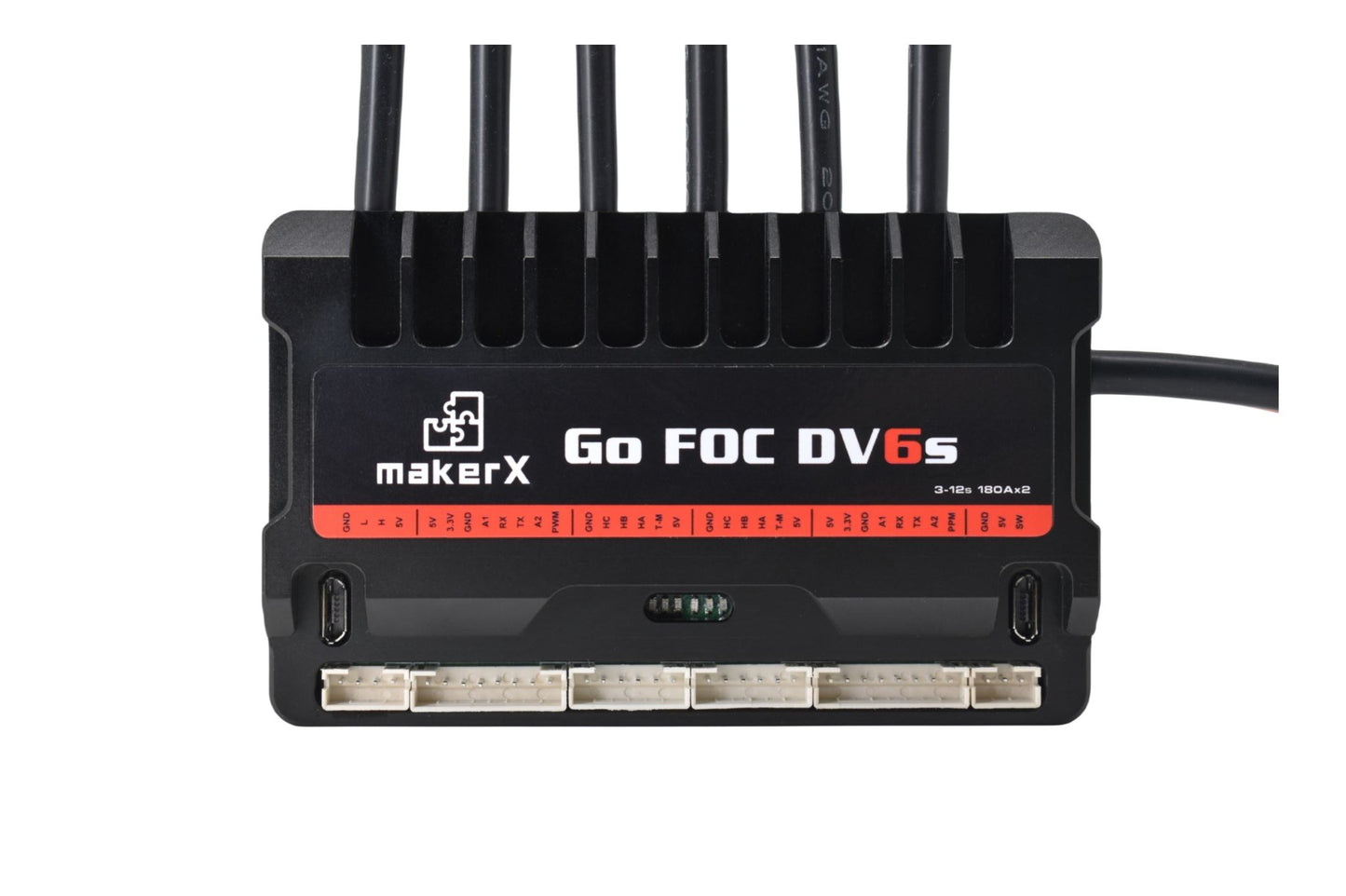

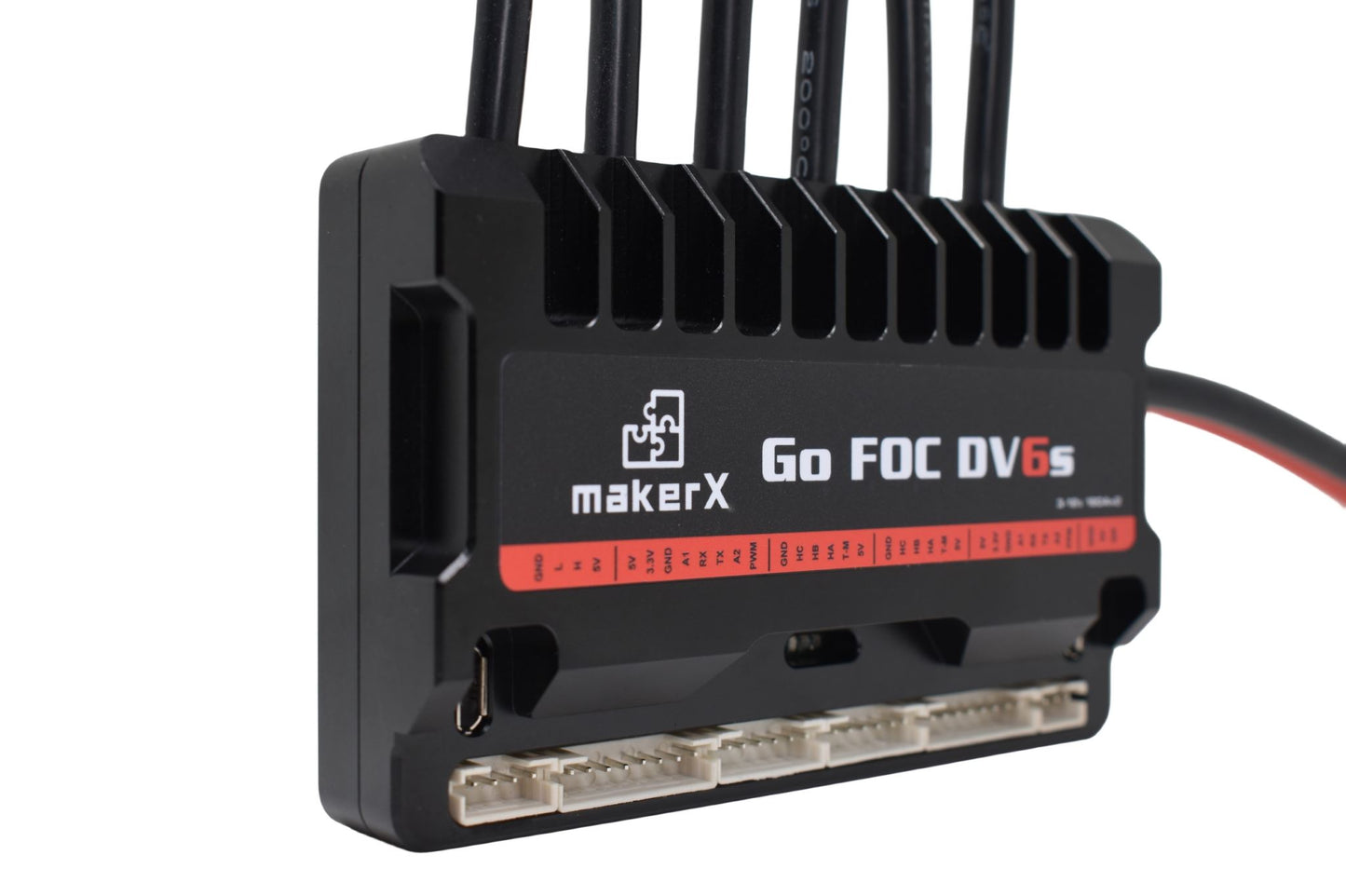

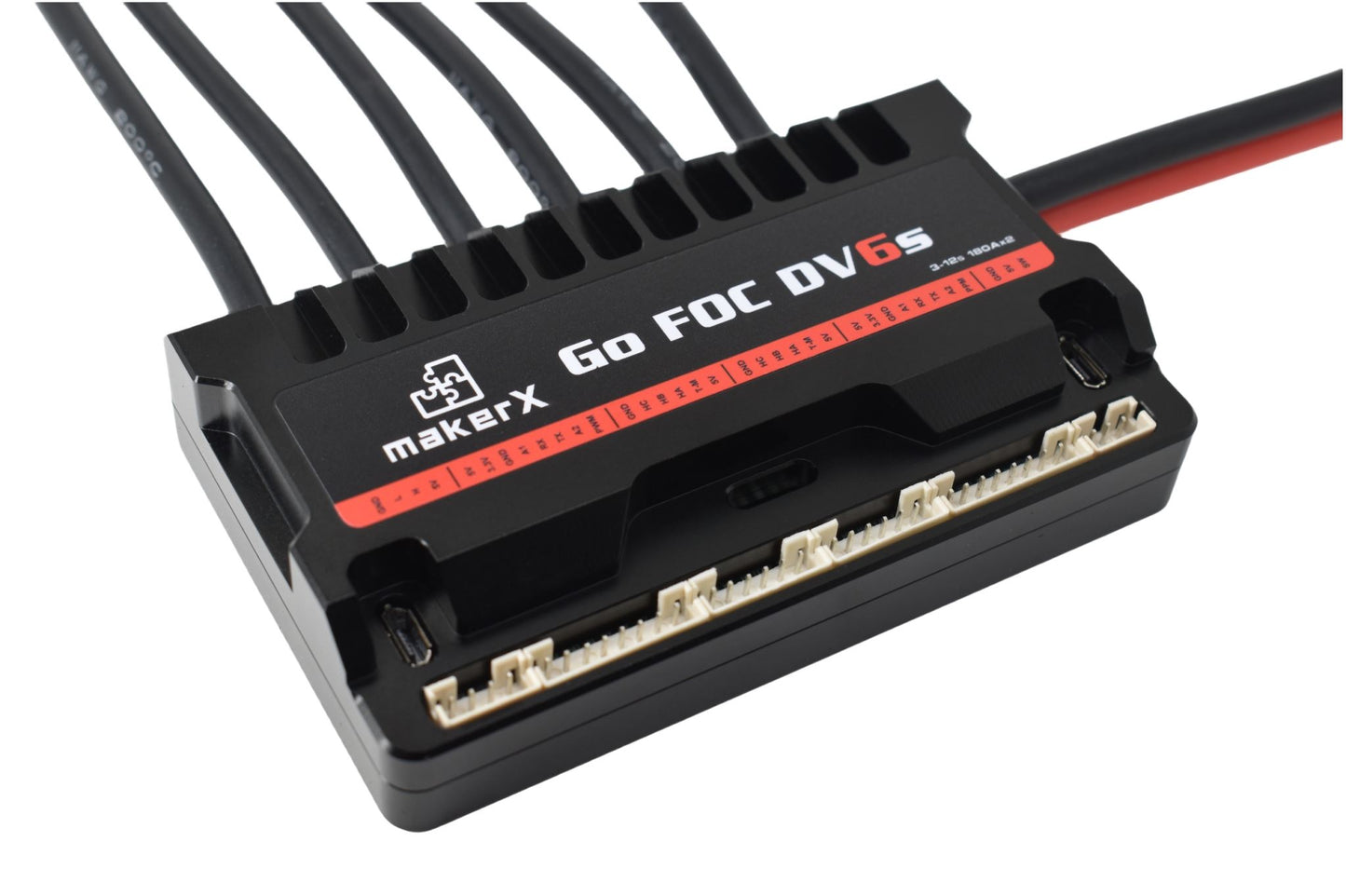

Go-FOC DV6 3-12S Dual drive ESC for electric Skateboard Base On VESC6

Shipping list:
Go-FOC DV6(Pro)(Cooling box included)    x   1
XT90S  Plug (Male and female)  x  1
5.5mm bullets connectors (Male and female)  x   6
PH2.0MM JST wires
GH1.25 JST
Micro USB cable    x   1

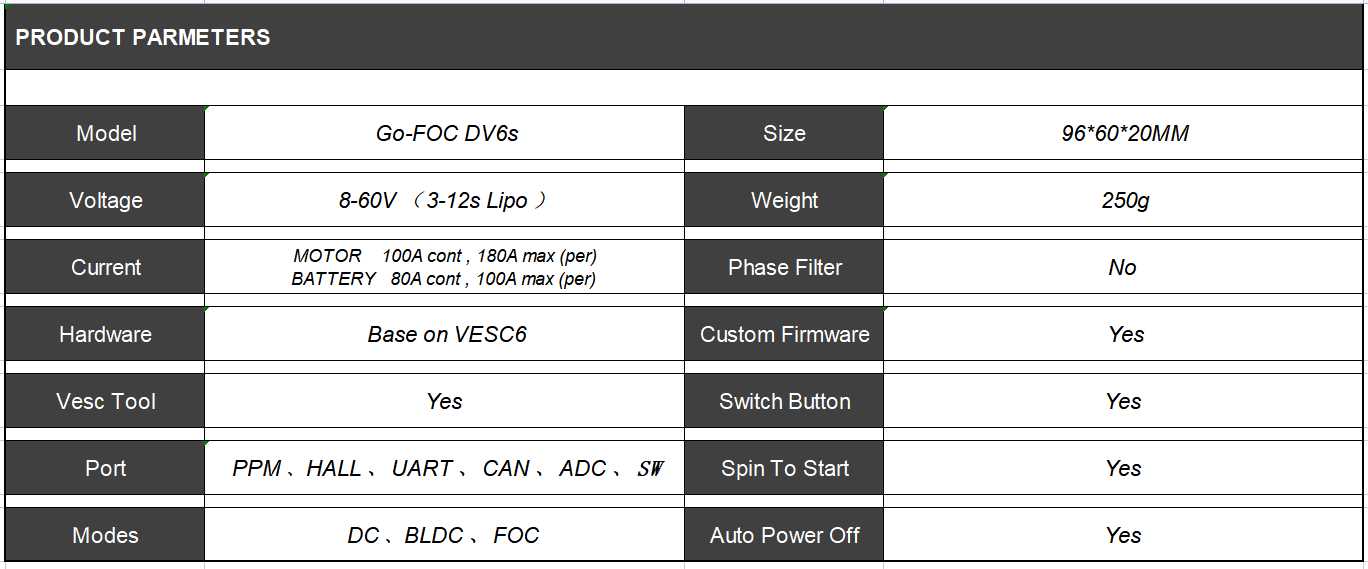

Voltage  : 8-60V(3-12sLIPO )

Current :100A x 2  continuous   120A x2  MAX

MOSFET: NVMFS5C612NL x 24  (250A Per)

Hardware:  Based on VESC 6


Weight: 365g



The new Go-FOC DV6 Pro
The peak single ESC current is increased to 180A  , Absolute Maximum 200A !
Reduce heat by 40%!
Warning: DV6 Pro uses a custom firmware, uploading official firmware may damage the ESC. Please use this link to get the dedicated firmware for the DV6 Pro version ↓↓↓↓
Note: This firmware is modified based on firmware version 5.03

The Go-FOC DV6 is based upon the VESC-Project.

VESC is a registered TM, owned by Benjamin Vedder !
