The all-new Go-FOC R200S dual-drive controller—first batch pre-order now live! Only 20 units available, with a $60 early bird discount. Shipped in order of purchase; all out by July 20.

Small Size. Infinite Power.

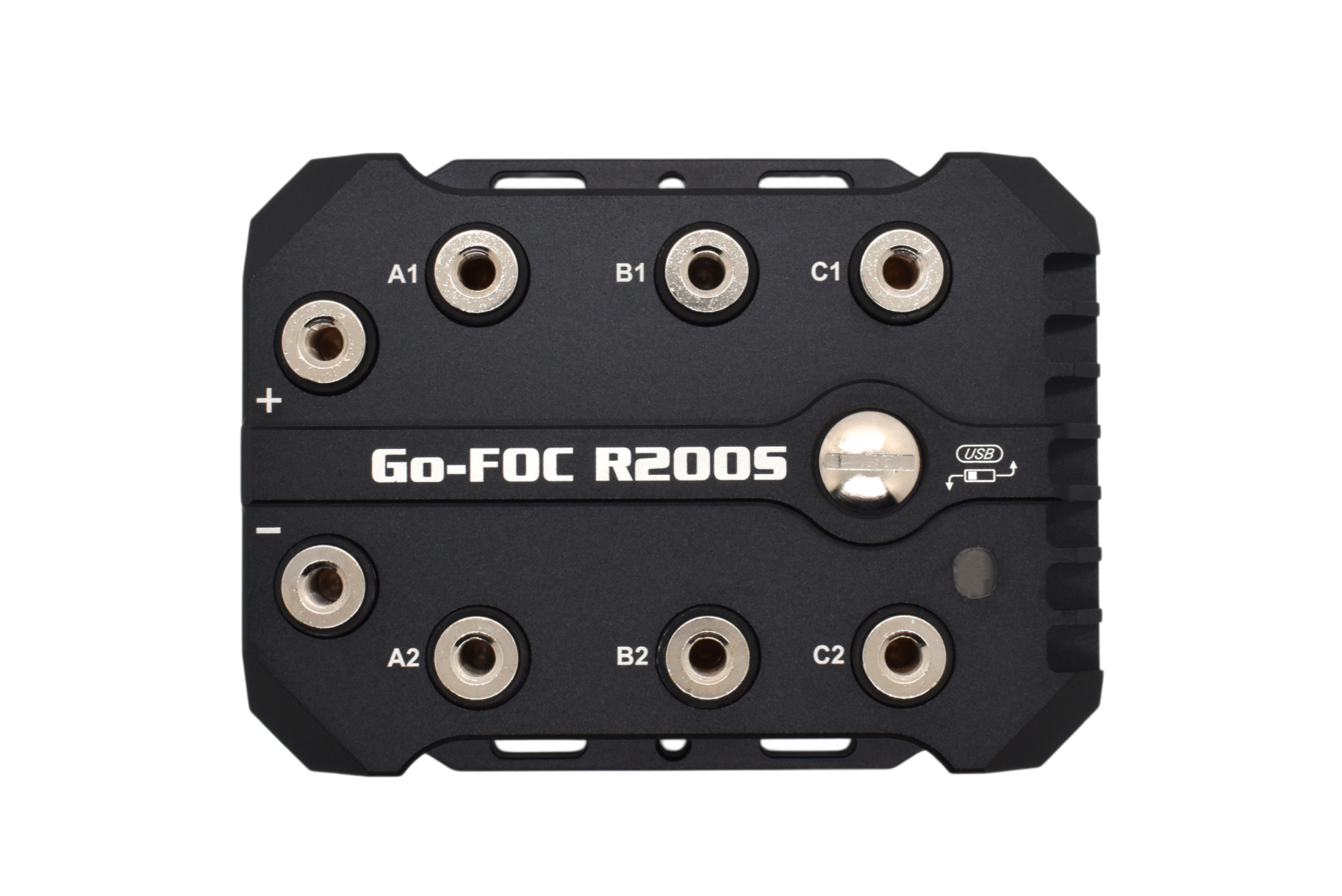

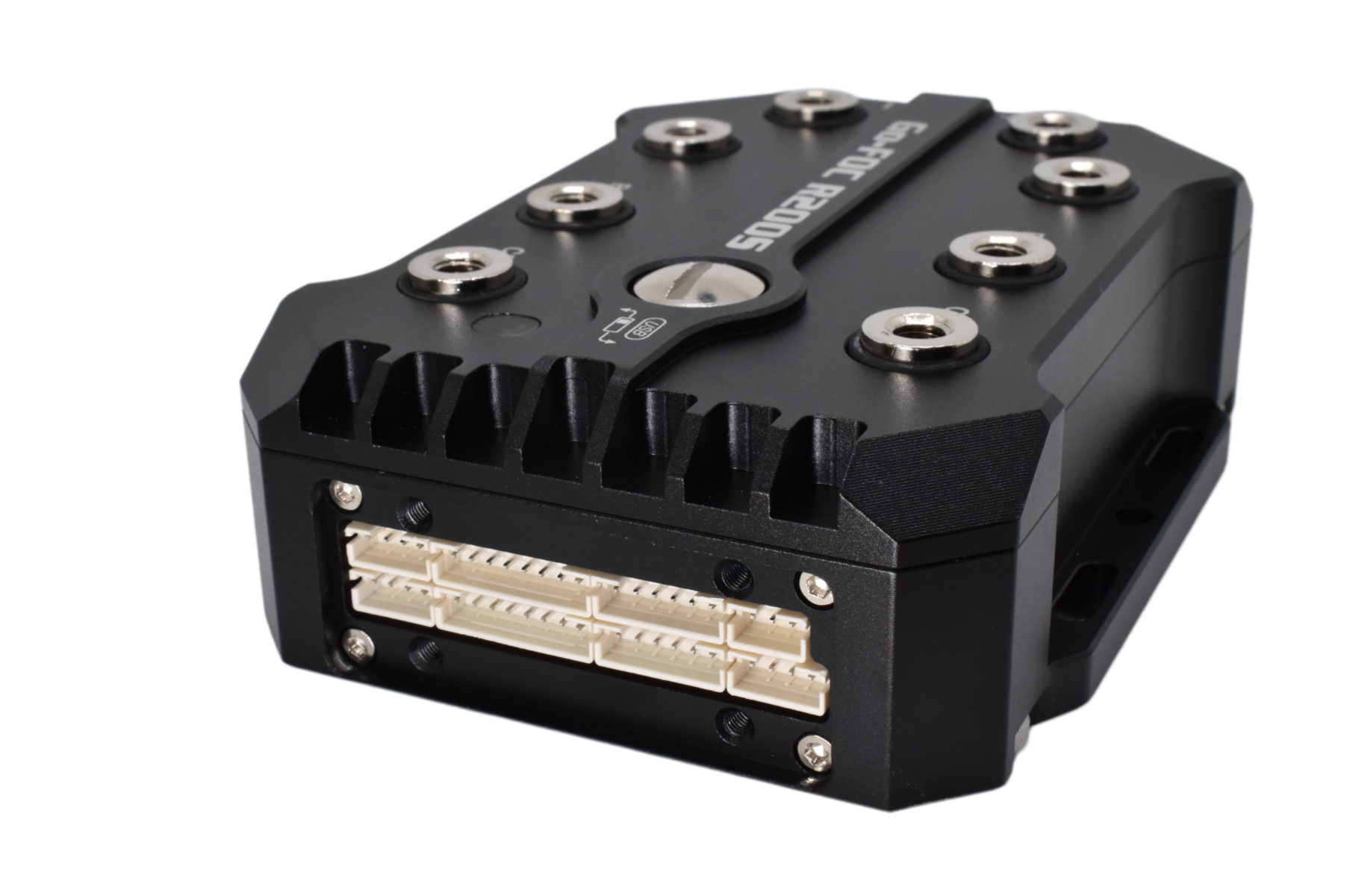

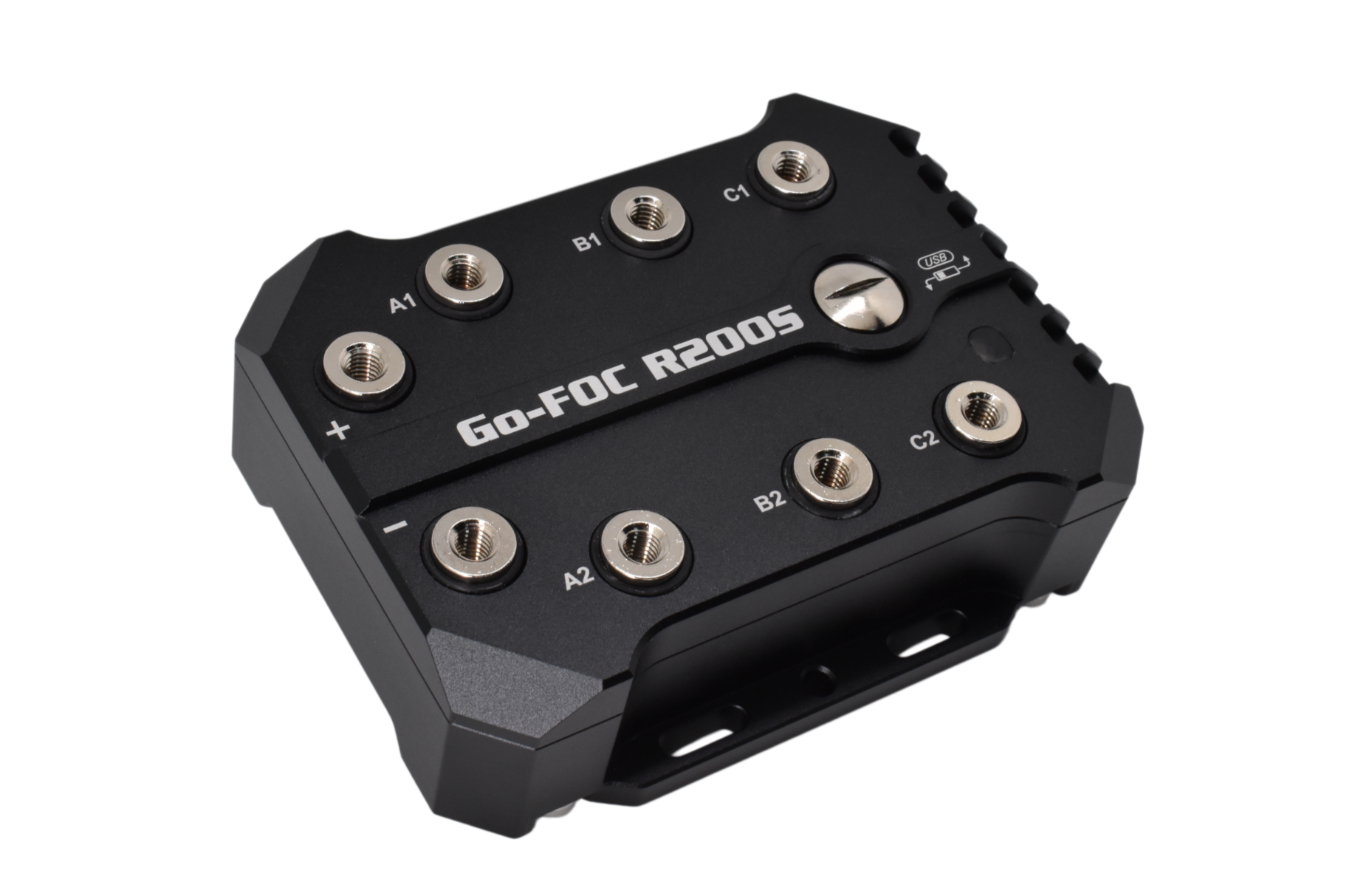

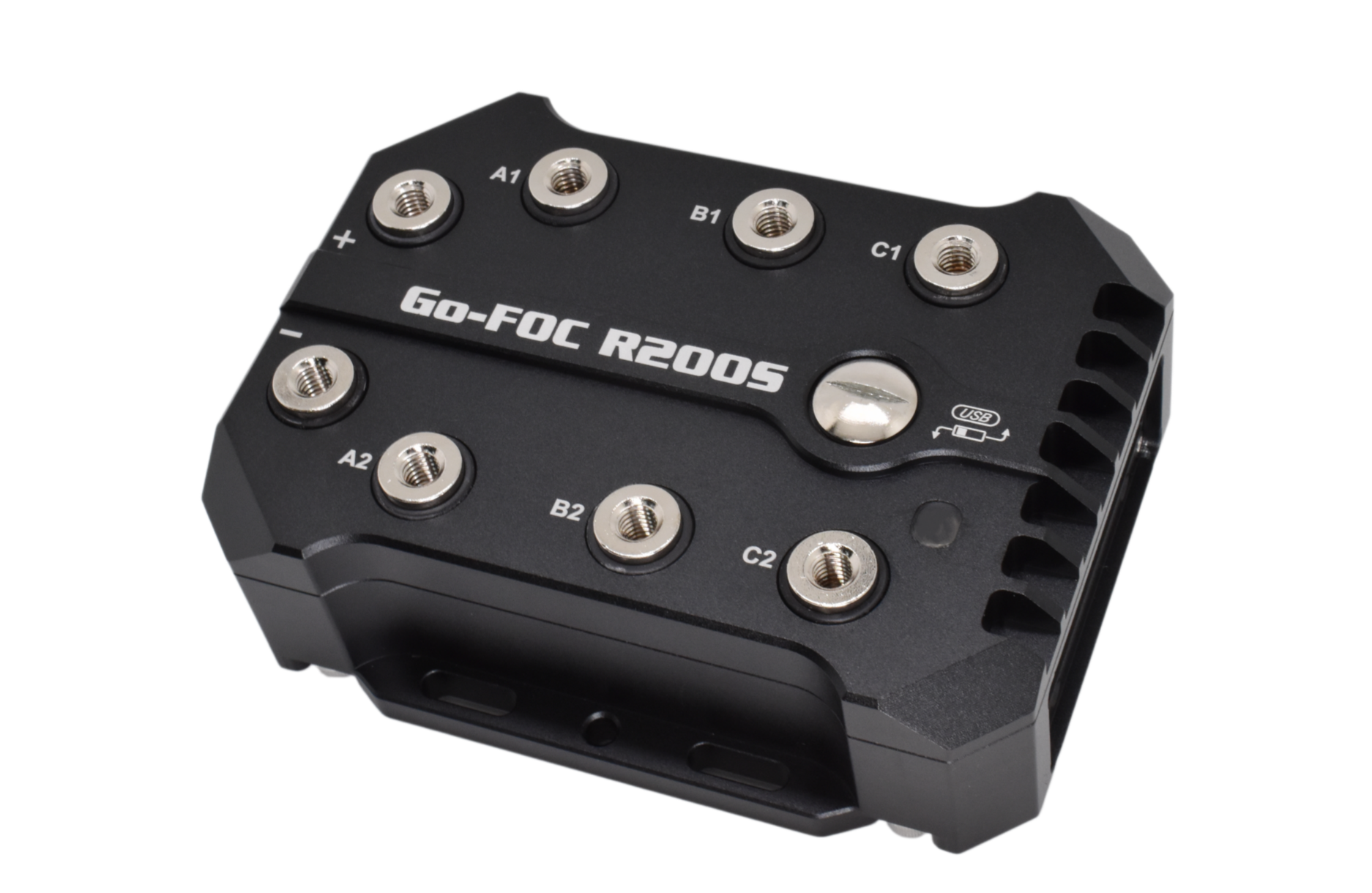

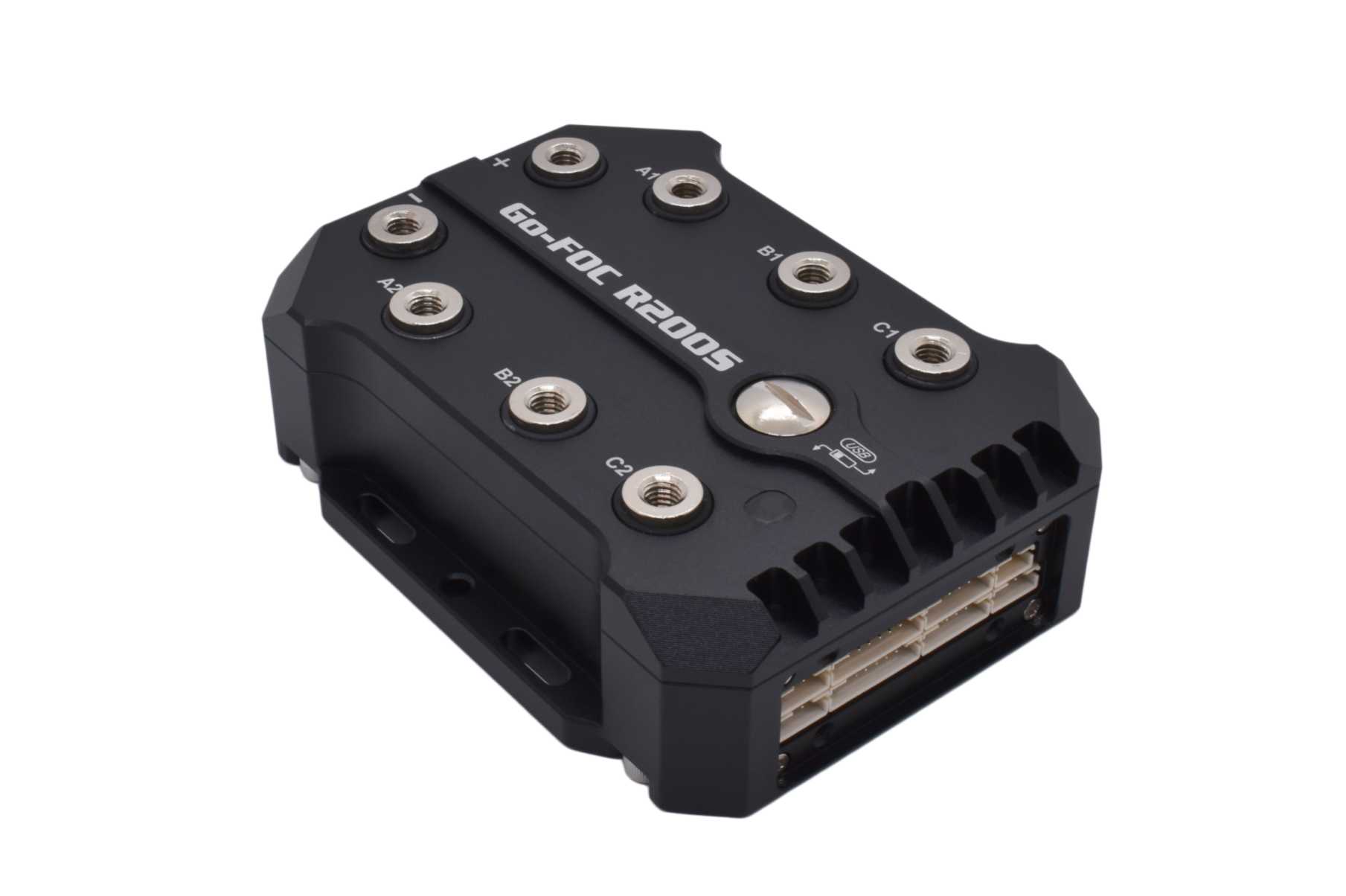

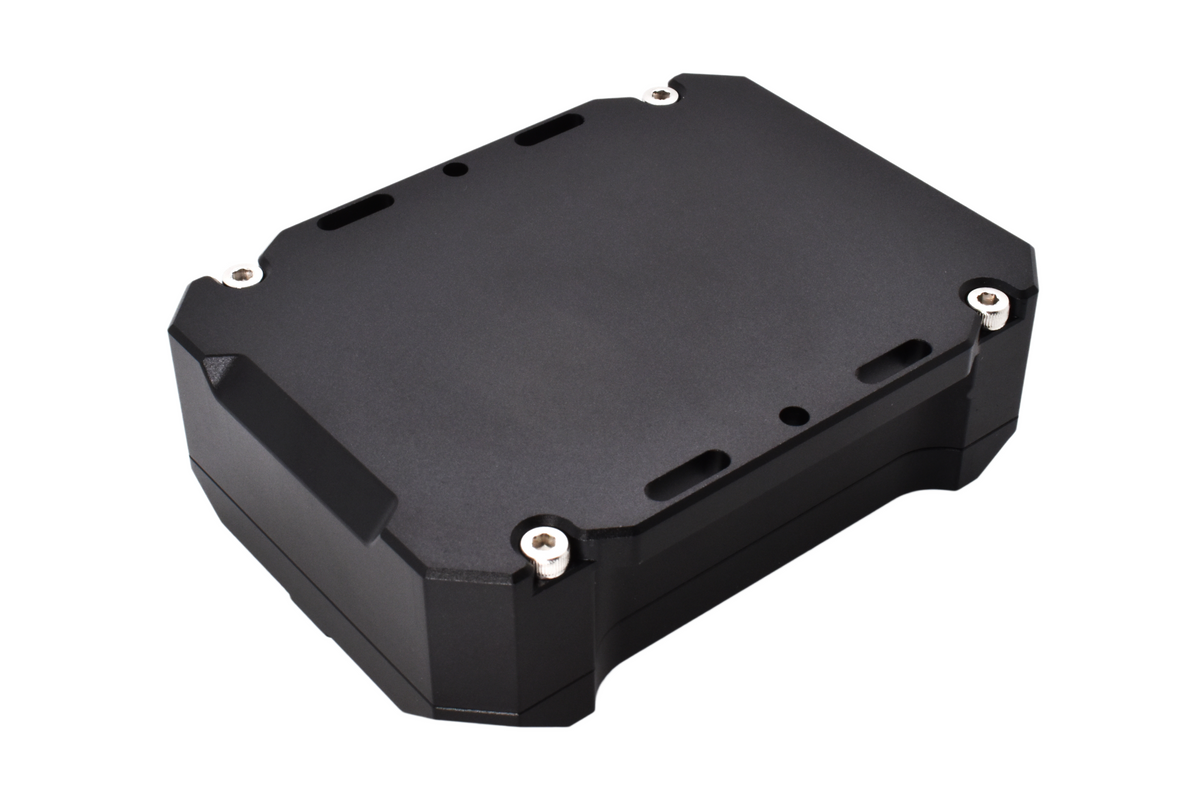

Go-FOC R200S

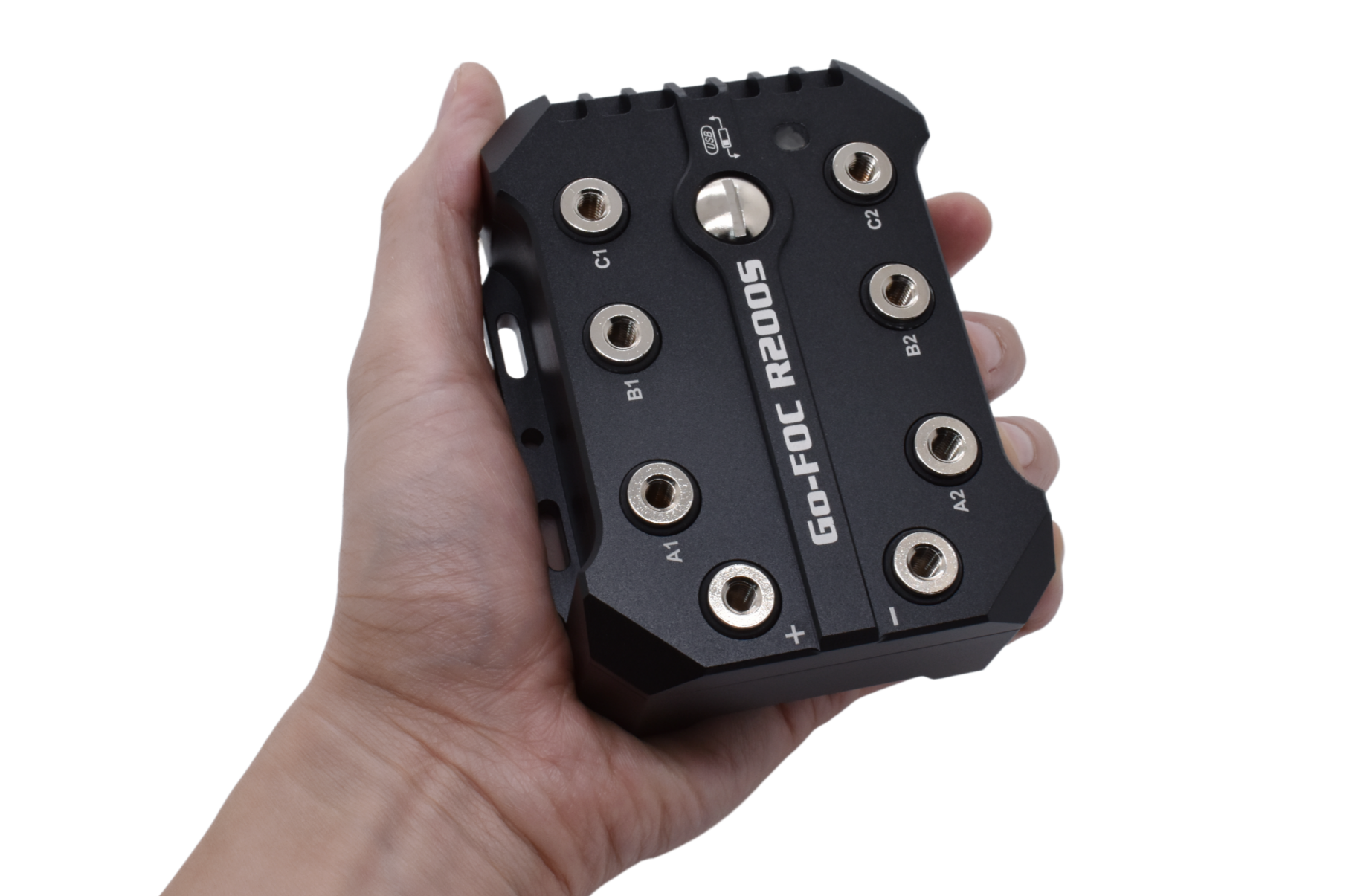

Palm-sized: 118.7×91.5×38.2mm

Peak Power: 35kW Dual-Channel (800A)

Max Input: 96V (＜21S)

Full CNC Aluminum Body | IP-Rated Weatherproof | ESD-Protected Signal Ports

Applications: Electric Skateboards, Electric Go-Karts & Dual-Drive Systems

Pocket-Sized Giant. Race Without Limits. R200S — Born for Racing！

Shipping list：

Go-FOC R200S     x   1

Copper lug     x8

M6 cross combination screw   x8

PH2.0MM JST cables

TypeC USB cable    x 1

16mm metal switch button  x1

USB Port Selection

Due to the limited space inside the controller, only one USB Type-C port is provided.

After opening the USB cover, you will see a USB Type-C port and a small slide switch located directly below it. This switch is used to select which ESC the USB port is connected to.

• Slide the switch to the left → Connects to the Lower ESC (A2 / B2 / C2).
• Slide the switch to the right → Connects to the Upper ESC (A1 / B1 / C1).

Note: Only one ESC can be connected to the USB port at a time.

To use this module, you should have some knowledge of electronics; if not, be cautious when buying it.
